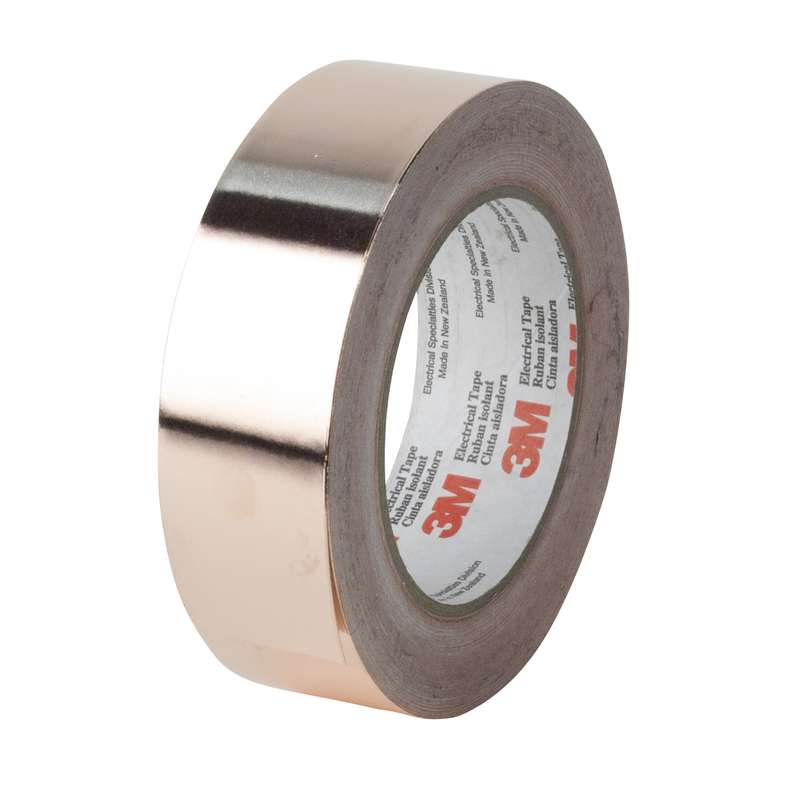

3M™ Copper Foil EMI Shielding Tape 1194, 1-1/2 in x 36 yd, 3 in Paper Core, 6 Rolls/Case
Hisco #:7010398563-31180
MFG #:7010398563
Item must be ordered in multiples of 1
This item is on clearance. Price valid only on available inventory.
All sales final - no exchanges or returns.
3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1194 has a deadsoft, copper foil backing with an aggressive, pressure sensitive, non conductive, acrylic adhesive that ensures firm adherence. It offers excellent resistance against oxidation and discoloration and its solderable backing makes it an ideal choice for applications like connectors, cable shielding and electrostatic shielding between transformer windings. UL Listed and RoHS 2011/65/EU Compliant.
3M 7010398563 Features:- Non-conductive, acrylic adhesive offers optimized adherence
- Removable liner for easy die-cutting and handling
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
- Package Quantity: 6 RLS
- Part Number: 1194 1.5"X36YD
- Specifications: RoHS 2011/65/EUN/A
- Width: 1.5 in
Product Description
This item is on clearance. Price valid only on available inventory.
All sales final - no exchanges or returns.
3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1194 has a deadsoft, copper foil backing with an aggressive, pressure sensitive, non conductive, acrylic adhesive that ensures firm adherence. It offers excellent resistance against oxidation and discoloration and its solderable backing makes it an ideal choice for applications like connectors, cable shielding and electrostatic shielding between transformer windings. UL Listed and RoHS 2011/65/EU Compliant.
3M 7010398563 Features:- Non-conductive, acrylic adhesive offers optimized adherence
- Removable liner for easy die-cutting and handling
- Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
- Package Quantity: 6 RLS
- Part Number: 1194 1.5"X36YD
- Specifications: RoHS 2011/65/EUN/A
- Width: 1.5 in
