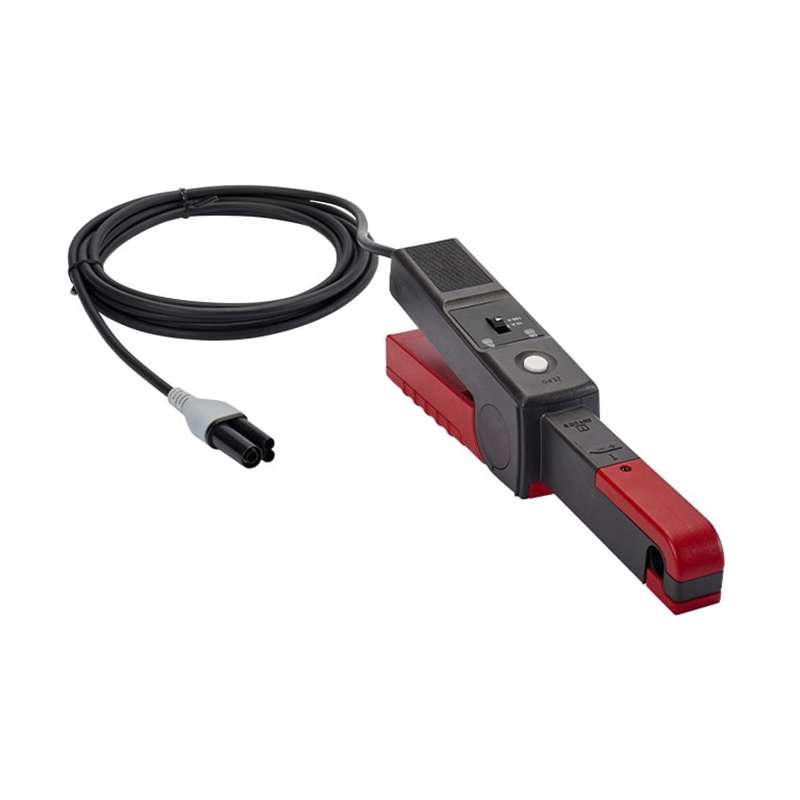

AC/DC Current Probe Model, For Use with Model 8345, PEL 112, PEL 113, and PEL 115
Hisco #:E94-65661
MFG #:E94
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 449.00 | |
| 3 | 433.77 | Save |
AEMC - E94 AC/DC Current Probe
Features and Specifications
- Measurement range (Two selectable): 10 A: 0.1 - 10 A / 100 A: 0.5 to 100 A
- Shielded cord and special 4-point plug termination
- Compact and ergonomic - A perfect companion for hard-to-reach places
- "Zero DC" function - Rest assured that your parameters are saved for future use
- Range Overshoot Indicator
- 10 ft (3 m) Lead length
- Type A current sensor
- Double Insulated
- (Ip) IP20 Ingress Protection
- Fixed jaw, 0.464 in (11.8 mm) Clamping Diameter
- Compatibility: 8345 three-phrase, Class A, Power Quality Analyzer
With cutting-edge Hall-effect technology, the E94 Current Clamp defines the way you measure alternating or direct currents. No interruptions to your installations - no need to cut off the current being measured. The E94 Current Clamp is also equipped with a molded 4-pin connector compatible with the latest-generation PowerPad IV Class A model 8345. When connected, the clamp draws power directly from the instrument, and the specific connector even allows automatic recognition by the instrument itself.
Product Description
AEMC - E94 AC/DC Current Probe
Features and Specifications
- Measurement range (Two selectable): 10 A: 0.1 - 10 A / 100 A: 0.5 to 100 A
- Shielded cord and special 4-point plug termination
- Compact and ergonomic - A perfect companion for hard-to-reach places
- "Zero DC" function - Rest assured that your parameters are saved for future use
- Range Overshoot Indicator
- 10 ft (3 m) Lead length
- Type A current sensor
- Double Insulated
- (Ip) IP20 Ingress Protection
- Fixed jaw, 0.464 in (11.8 mm) Clamping Diameter
- Compatibility: 8345 three-phrase, Class A, Power Quality Analyzer
With cutting-edge Hall-effect technology, the E94 Current Clamp defines the way you measure alternating or direct currents. No interruptions to your installations - no need to cut off the current being measured. The E94 Current Clamp is also equipped with a molded 4-pin connector compatible with the latest-generation PowerPad IV Class A model 8345. When connected, the clamp draws power directly from the instrument, and the specific connector even allows automatic recognition by the instrument itself.
