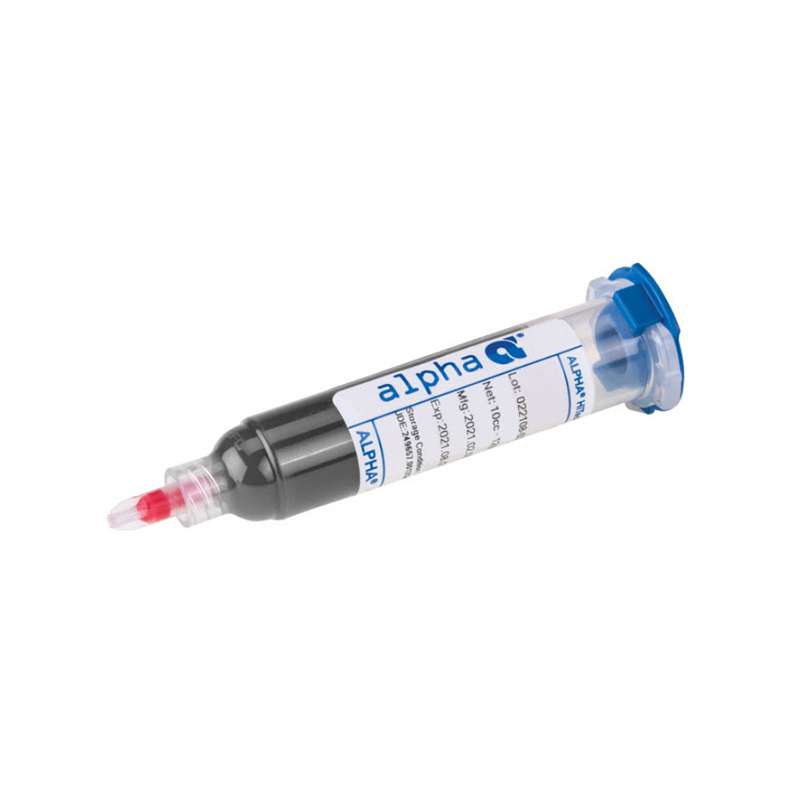

ALPHA Capillary Underfill, CU31-3100, Low Cte, 10CC EFD Syringe, CU31-3100 Series
Hisco #:249781-0010GM-1998
MFG #:249781.0010GM
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 26
Item must be ordered in multiples of 26
Item must be ordered in multiples of 26
The ALPHA 249781.0010GM, with its high filler content, is designed to provide better mechanical strength for CSP and Flip Chip packages. Good underfill capillary flow can be achieved by preheating the devices at 70 - 100°C during dispensing.
ALPHA 249781.0010GM Features:- Excellent thermal cycling performance
- Releases stress over a large area; primary stress is CTE mismatch between component and board
- High Glass Transition Temperature
- Low Coefficient of Thermal Expansion
- Halogen Free
- Complies with RoHS Directive 2011/65/EU
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The ALPHA 249781.0010GM, with its high filler content, is designed to provide better mechanical strength for CSP and Flip Chip packages. Good underfill capillary flow can be achieved by preheating the devices at 70 - 100°C during dispensing.
ALPHA 249781.0010GM Features:- Excellent thermal cycling performance
- Releases stress over a large area; primary stress is CTE mismatch between component and board
- High Glass Transition Temperature
- Low Coefficient of Thermal Expansion
- Halogen Free
- Complies with RoHS Directive 2011/65/EU
Technical Information
Brand: Alpha
Country Of Origin: KR
Harmonized Code: 3506.10.5000
