SPZ-50 Stereo Zoom Binocular Microscope (6.75x-50x), Glide Boom Stand, LED Ring Light

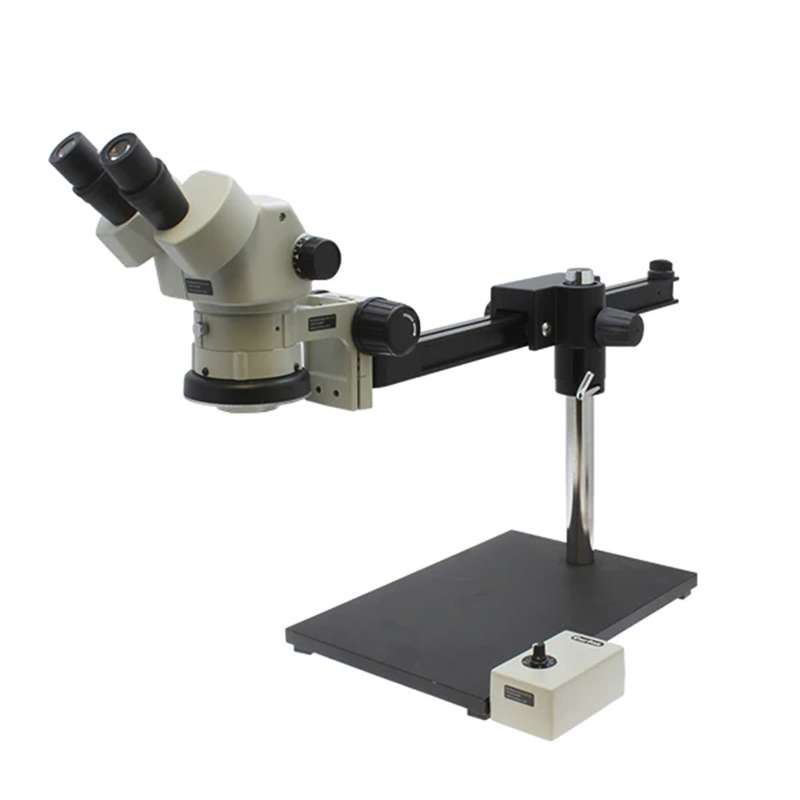

The Aven 26800B-373-1 is the ideal inspection system for viewing parts with a large surface area. Featuring Aven’s Ultra-Glide Boom Stand, operators can smoothly glide the boom along it’s 23 inch reach. This system also includes Aven’s SPZ-50 Stereo Zoom Microscope with 10x eyepieces (6.7x–50x magnification) and E-Arm Focus Mount w/ Integrated Ring Light.

• Offers the best in class zoom ratio (7.46:1) and super sharp 3D images
• Ultra-Glide boom stand provides smooth motion and allows for easy scanning
• Features two locking knobs to adjust the horizontal and vertical position of the gliding arm
• 10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses
• Includes a built-in eco-friendly 60 LED Ring Light for ultra-bright illumination
• 6.7x-50x magnification range, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces

• Brand: Aven
• Body Type: Binocular, 360 degree rotatable, 45 degree inclined eyepiece tube
• Eyepieces: Two 10x (FN23) Eyepieces
• Magnification: 6.7x-50x
• Working Distance: 108mm
• Zoom Ratio: 7.46:1
• Interpupillary Distance: 52mm-75mm
• Optical System: Greenough
• Stand Type: Arm Boom with Heavy Metal Base
• Vertical Post Height: 13.5" (342.9mm)
• Vertical Post Diameter: 1.46" (37.2mm)
• Extension Post Length: 8.85" (225mm)
• Horizontal Arm Length: 23" (584.2mm)
• Focus Mount Hole Diameter: 5/8" (15.875mm)
• Compatible Mounts: SCW-PA Focus Mount with Tiltable Arbor or E-Arm
• Compatible Bodies: SSZ, SPZ, DSZ, NSW series
• Focus Mount Type: E-Arm
• Illumination: 60 LED Ring Light with Dimmer Control
• LED Life Rating: Minimum 20,000 hours
• Diameter: 2.91" (74mm)
• Package Contents: SPZ-50 Stereo Zoom Microscope, E-Arm Focus Mount with LED Ring Light, Ultra-Glide Boom Stand
