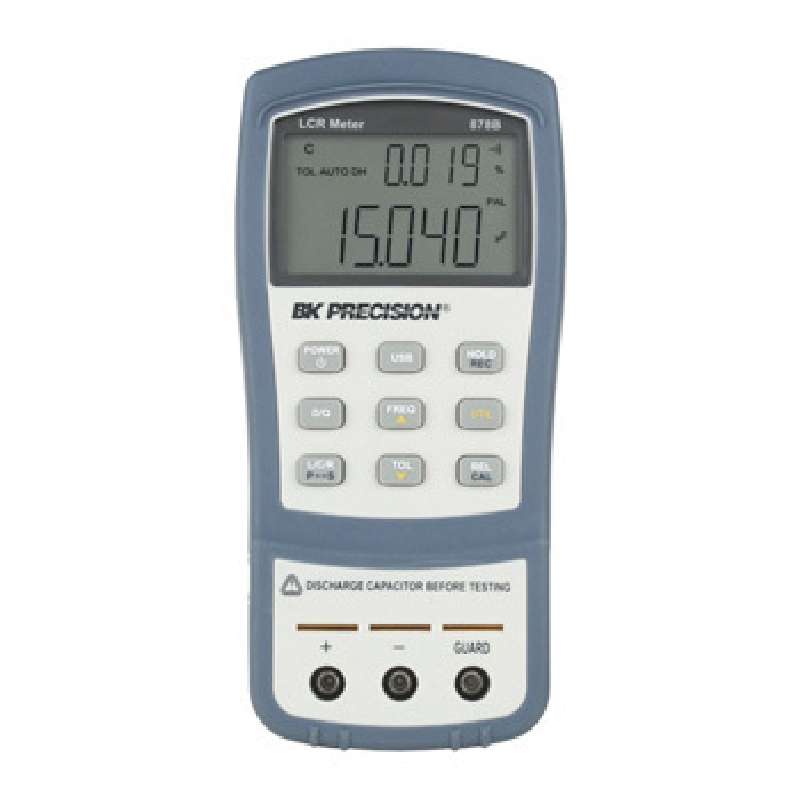

Dual-Display Universal Handheld Auto Ranging LCR Meter with 0.5% Accuracy
Hisco #:878B-65699
MFG #:878B
Our Price: $360.00 EA
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 10 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 360.00 | |
| 3 | 346.39 | Save |
The BK Precision 878B is a 10 M? LCR meter with an LCD display. The hand-held meter is designed for accurate and fast measurements.
BK Precision 878B Features:- 40000 counts resolution on primary and 10000 counts resolution on secondary display
- L, C, R and Z primary measurements
- Automatic calculation of secondary parameters D, Q, ?, and ESR
- 0.5% basic accuracy
- Fast auto range design for rapid, easy component measurements
- Relative mode
- Data Hold and Min/Max/Average recording
- USB Virtual COM interface
- SCPI compliant commands for remote communication
- Software for data logging and front panel emulation available as free download
- Selectable auto-power-off options
- Product Type: LCR Meter
- Maximum Capacitance Measurement: 20mF
- Maximum Resistance Measurement: 10M?
- Maximum Inductance Measurement: 1000H
- Minimum Capacitance Measurement: 40pF
- Minimum Resistance Measurement: 4?
- Minimum Inductance Measurement: 40µH
- Battery Life: 16h
- Battery Type: 9V Alkaline Battery
- Display Type: LCD
- Power Source: Battery
- Dimensions: 7.5 x 3.5 x 1.6in
- Length: 7.5in
- Height: 1.6in
- Model Number: 878B
- Width: 3.5in
- Minimum Operating Temperature: +32°F
- Maximum Operating Temperature: +104°F
Product Description
Technical Information
SDS/TDS
Parts & Accessories
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The BK Precision 878B is a 10 M? LCR meter with an LCD display. The hand-held meter is designed for accurate and fast measurements.
BK Precision 878B Features:- 40000 counts resolution on primary and 10000 counts resolution on secondary display
- L, C, R and Z primary measurements
- Automatic calculation of secondary parameters D, Q, ?, and ESR
- 0.5% basic accuracy
- Fast auto range design for rapid, easy component measurements
- Relative mode
- Data Hold and Min/Max/Average recording
- USB Virtual COM interface
- SCPI compliant commands for remote communication
- Software for data logging and front panel emulation available as free download
- Selectable auto-power-off options
- Product Type: LCR Meter
- Maximum Capacitance Measurement: 20mF
- Maximum Resistance Measurement: 10M?
- Maximum Inductance Measurement: 1000H
- Minimum Capacitance Measurement: 40pF
- Minimum Resistance Measurement: 4?
- Minimum Inductance Measurement: 40µH
- Battery Life: 16h
- Battery Type: 9V Alkaline Battery
- Display Type: LCD
- Power Source: Battery
- Dimensions: 7.5 x 3.5 x 1.6in
- Length: 7.5in
- Height: 1.6in
- Model Number: 878B
- Width: 3.5in
- Minimum Operating Temperature: +32°F
- Maximum Operating Temperature: +104°F
Technical Information
Brand: BK Precision
Weight: 1.585
Country Of Origin: CN
Harmonized Code: 9030.89.0100
UPC Code: 817050087826
