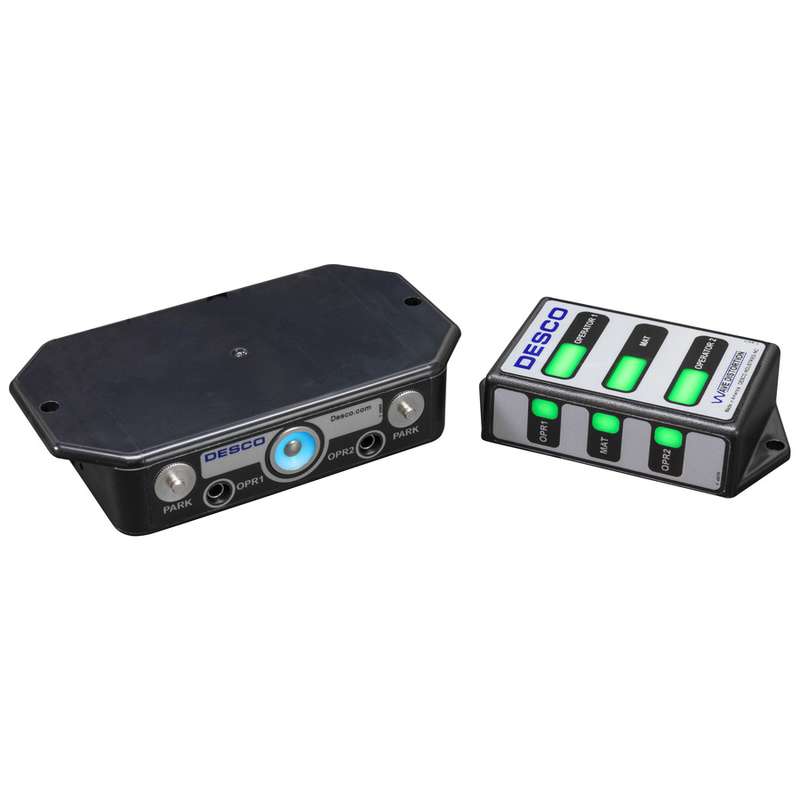

Dual Operator Monitor, Universal Power Adapter

The Desco 19656

• Dual Operator Workstation Continuous Monitor. Continuously monitors the path-to-ground integrity of two operators and one ESD worksurface
• Wave Distortion Technology. Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
• IMPROVED Operator Alarm. Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent
• NEW Park Delay Timer. Indicates the 8 second delay to disconnect and park the operator wrist cord
• NEW Visual Status Display. Displays the operators’ and worksurface status: illuminates red when intermittent or failed connection occurs
• NEW Mat Monitor Switch. Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
• NEW Audible Alarm Adjustment. Sets the audible alarm volume from loud to louder
• NEW 19323 Power Relay Accessory. Controls power to workbenches, hand tools, and other electronic devices dependent on the Dual Operator Continuous Monitor’s status
• Park Snap. Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
• Single-wire Impedance Design. Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2 Volt Operator Test Voltage. Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time. Identifies failures and intermittencies
• Calibration Verification. Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
• NIST Calibrated with Certificate Included. Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• 100-240VAC Safety Certified Power Adapter with North American Plug. Works with standard electrical systems in North America, Japan, and Asia
• Made in the United States of America
*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
