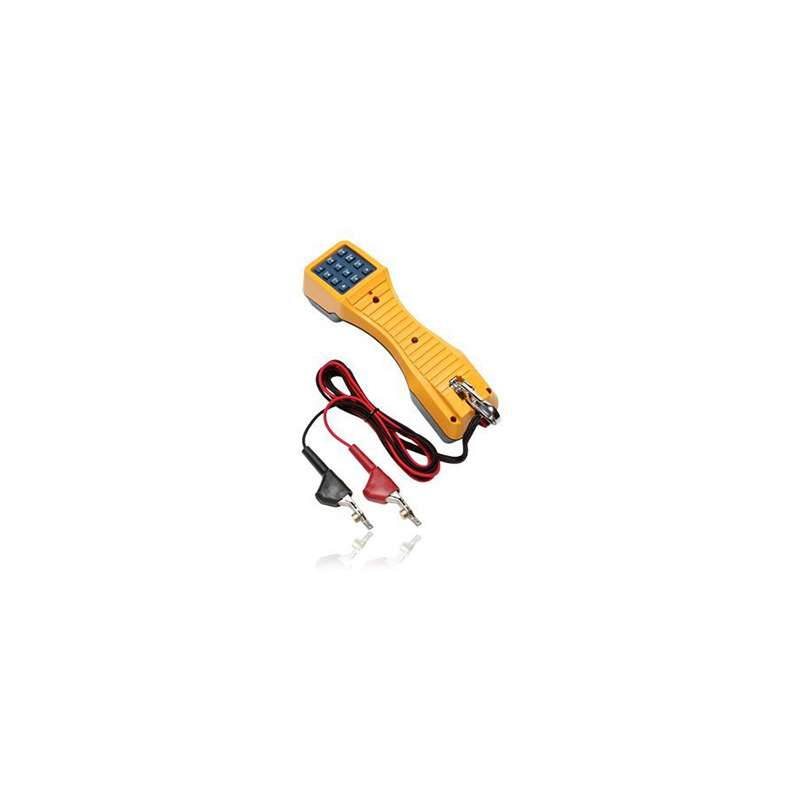

Test Set with Banana Jacks To Alligator Clips-TS19, Complete
Hisco #:19800003-65681
MFG #:19800003
Our Price: $245.51 PC
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke Networks 19800003 is a TS19 test set with banana jacks to alligator clips specifically designed for in-house telecom technicians.
Fluke Networks 19800003 Features:- Utilizes impedance monitor to prevent disruption of service
- Offers talk/monitor capabilities, polarity test, and last number redial
- Features tone (DTMF) and pulse operation
- Brand: Fluke Networks
- Dimensions: 12.01" x 4.49" x 3.5"
- Packaged Weight: 1.34 lbs
- Loop Limit: 2.4 kΩ maximum at 48 VDC (nominal 15 mA minimum loopcurrent)
- DC Resistance (Talk Mode): 150 Ω typical at 80 mA current
- Low Impedance (Ring Position): 600 Ω at 1 KHz typical
- High Impedance (Hi Z Position): 100 kΩ minimum at 1 KHz
- Rotary Dial Output: 10 pps .5 pps
Product Description
Technical Information
Back to top
Product Description
The Fluke Networks 19800003 is a TS19 test set with banana jacks to alligator clips specifically designed for in-house telecom technicians.
Fluke Networks 19800003 Features:- Utilizes impedance monitor to prevent disruption of service
- Offers talk/monitor capabilities, polarity test, and last number redial
- Features tone (DTMF) and pulse operation
- Brand: Fluke Networks
- Dimensions: 12.01" x 4.49" x 3.5"
- Packaged Weight: 1.34 lbs
- Loop Limit: 2.4 kΩ maximum at 48 VDC (nominal 15 mA minimum loopcurrent)
- DC Resistance (Talk Mode): 150 Ω typical at 80 mA current
- Low Impedance (Ring Position): 600 Ω at 1 KHz typical
- High Impedance (Hi Z Position): 100 kΩ minimum at 1 KHz
- Rotary Dial Output: 10 pps .5 pps
Technical Information
Brand: Fluke Networks
Weight: 1.344
UPC Code: 754082038320
