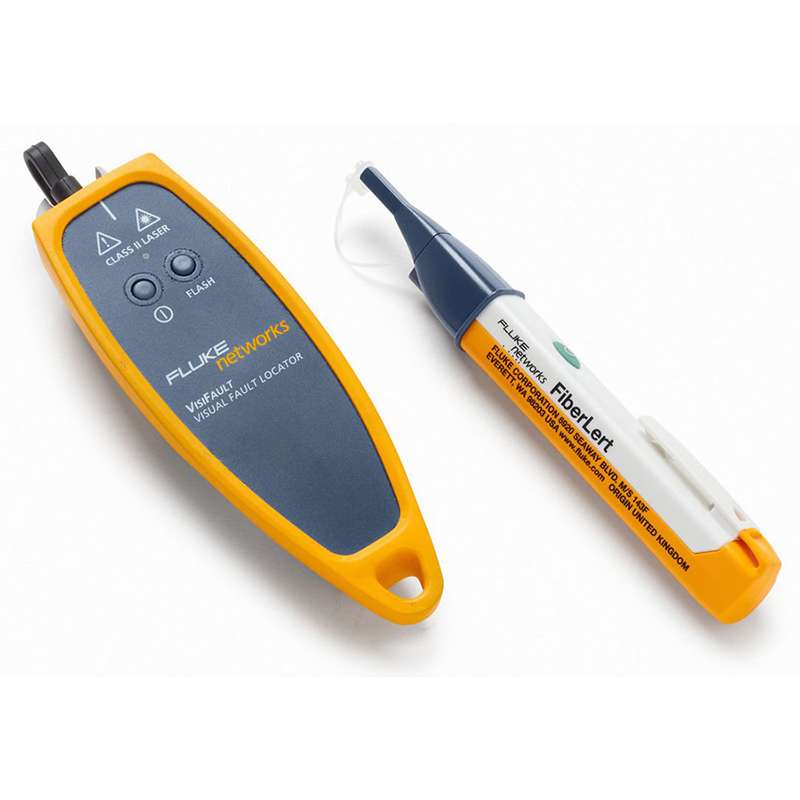

Visual Fault Locator with Live Fiber Detector

VISIFAULT-FIBERLRT Visual Fault Locator w/Live Fiber Detector

You can diagnose and repair simple fiber link problems with Fluke Networks' VisiFaultT Visual Fault Locator (VFL). The laser-powered VisiFault Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.

Optical

• Fiber compatibility: Multimode and Singlemode
• Wavelength: 650 nm (visible wavelength)
• Laser safety rating: Class II
• Output power: < 1.3 mW
• Output modes: Continuous (steady) and flashing (2-3Hz pulsed)
• Range: 3 km multimode, 4 km singlemode

Environmental and Mechanical

• Operating temperature: 0 C to 40 C
• Storage temperature: -20 C to 60 C
• Relative humidity: 95% (10 to 35 C)
• Vibration: Random, 2g, 5-500 Hz
• Shock: 1 m drop onto all corners and face
• Altitude: 3000 m

General

• Adapter: 2.5 mm universal
• Adapter cap: Tethered protective end cap
• Controls: On/off, continuous/flashing
• Battery type: 2 x AA
• Battery life: > 80 hours in continuous mode
• Safety: CSA C22.2 No. 1010.1 1992, EN 61010-1, CE
• Carrying Case: Soft sided with belt loop

FiberLert Live Fiber Detector

This pocket sized tool tests single-mode, multimode, UPC and APC patch cords and ports with a non-contact/non-contaminating detector. The LightBeat feature flashes the LED, indicating a powered-on condition and good battery.

• Detects optical power in single-mode and multimode fiber wavelengths (near infrared range 850 nm to 1625 nm)
• No setup or interpretation needed–light and sound indicate presence of an optical signal
• Non contact” detector reduces the risk of contamination and damage
• Suitable for ports and patch cords, SM, MM, UPC and APC connections

What's in the Box

• VISIFAULT-FIBERLRT VisiFault Visual Fault Locator
• 2.5mm universal adapter
• Two AAA batteries
• FiberLert live fiber detector (850 nm to 1625 nm)
• Two AAA batteries
