ISee Mobile Thermal Imaging Camera For IPhone IOS, 25Hz Frame Rate, 14-1022 F Temperature Range
Hisco #:TC01B-19816
MFG #:TC01B
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 519.99 | |
| 3 | 502.35 | Save |
FLUKE-TC01B 25HZ Mobile Thermal Camera
Features and Specifications
- Frame Rate: 25Hz
- IR resolution: 256 x 192
- Pixel size: 12
µ m - Temperature range: -20 to 550 Celsius, -4 to 1022 Fahrenheit
- Thermal sensitivity (NETD): 50mK
- Spectral range: 8 to 14
µ m - Fixed focal length: 3.2 mm
- Field of view (H x V): 56 x 42 degrees
- Spatial resolution: 3.81 mrad
- USB interface: Lightning (for iOS*)
- Power consumption: 200 mW (Typical)
- Ingress protection: IEC 60529: IP56
Fluke's TC01B For Smart phones

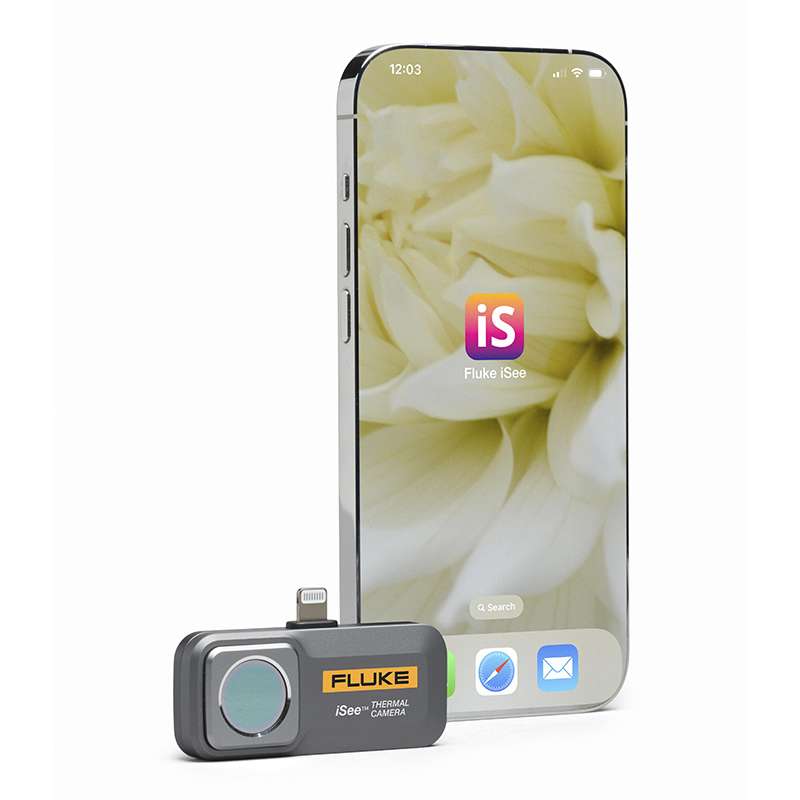

The FLUKE-TC01B iSee Mobile Thermal Camera enables on-the-go temperature measurement and thermal imaging by connecting to a smartphone's lightning port. Tailored for iOS* devices, it supports a wide range of applications with its extensive temperature range of up to 550 Celsius (1022 Fahrenheit), such as inspecting electrical cabinets, diagnosing HVAC issues, and installing underfloor heating. It delivers professional-grade image quality, akin to high-end thermal cameras, featuring a 256 x 192 pixel thermal resolution and smooth video recording at 25 Hz. The software provides detailed spot, line, and area temperature analysis for accurate diagnostics.
*It fully supports iOS with the Apple MFI Certification obtained
Additional Highlights
- Image quality comparable to professional thermal imagers
- Full temperature range analysis
- Easy image and video management
- Real-time image sharing without barriers
- Portable and small, only takes a second to get started
- Real-time high and low temperature capture
- Adjustable emissivity to apply with different materials
- Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging app
- Real-time temperature alarm for timely response of unusual conditions
- Automatic time-lapse capture mode, for unattended operation
- Infrared (IR) and visible image comparison for locating, comparing and archiving
- Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)
What's in the Box
- FLUKE-TC01B 25HZ Mobile Thermal Camera
- Warranty Card
- Quick Reference Guide
Product Description
FLUKE-TC01B 25HZ Mobile Thermal Camera
Features and Specifications
- Frame Rate: 25Hz
- IR resolution: 256 x 192
- Pixel size: 12
µ m - Temperature range: -20 to 550 Celsius, -4 to 1022 Fahrenheit
- Thermal sensitivity (NETD): 50mK
- Spectral range: 8 to 14
µ m - Fixed focal length: 3.2 mm
- Field of view (H x V): 56 x 42 degrees
- Spatial resolution: 3.81 mrad
- USB interface: Lightning (for iOS*)
- Power consumption: 200 mW (Typical)
- Ingress protection: IEC 60529: IP56
Fluke's TC01B For Smart phones
The FLUKE-TC01B iSee Mobile Thermal Camera enables on-the-go temperature measurement and thermal imaging by connecting to a smartphone's lightning port. Tailored for iOS* devices, it supports a wide range of applications with its extensive temperature range of up to 550 Celsius (1022 Fahrenheit), such as inspecting electrical cabinets, diagnosing HVAC issues, and installing underfloor heating. It delivers professional-grade image quality, akin to high-end thermal cameras, featuring a 256 x 192 pixel thermal resolution and smooth video recording at 25 Hz. The software provides detailed spot, line, and area temperature analysis for accurate diagnostics.
*It fully supports iOS with the Apple MFI Certification obtained
Additional Highlights
- Image quality comparable to professional thermal imagers
- Full temperature range analysis
- Easy image and video management
- Real-time image sharing without barriers
- Portable and small, only takes a second to get started
- Real-time high and low temperature capture
- Adjustable emissivity to apply with different materials
- Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging app
- Real-time temperature alarm for timely response of unusual conditions
- Automatic time-lapse capture mode, for unattended operation
- Infrared (IR) and visible image comparison for locating, comparing and archiving
- Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)
What's in the Box
- FLUKE-TC01B 25HZ Mobile Thermal Camera
- Warranty Card
- Quick Reference Guide
