TC01C 25HZ Thermal Imaging Camera, 256x192, -4 to 1022F, USB Type-C, TC01 Series

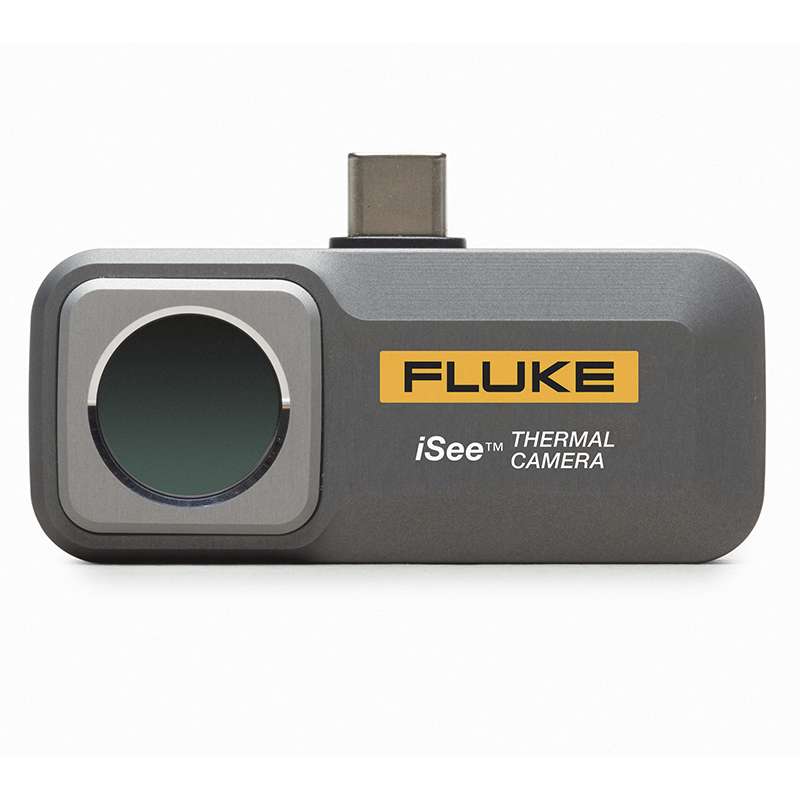

Fluke TC01C 25HZ Thermal Imaging Camera

Fluke TC01C iSee Mobile Thermal Camera for iOS smartphones is suitable for various applications due to its wide temperature range, up to 550 C (1022 F degrees), including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. The software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Features

• IR resolution: 256 x 192
• Pixel size: 12 µm
• Temperature range: -20 C to 550 C/-4 F to 1022 F
• Frame rate: 25 Hz
• Fixed focal length: 3.2 mm
• Thermal sensitivity (NETD): 50 mK
• Field of view (H x V): 56 x 42
• Spatial resolution: 3.81 mrad
• USB interface: Type-C
• Compatible system: iOS (supports iOS 11.0 or later)
• Power consumption: 200 mW (Typical)
• Ingress protection: IEC 60529: IP56, Up to 1-meter drop test
• EMC Environment: 47 CFR 15 Subpart B. Exempt per clause 15.103
• Made of high quality specially treated aluminum material

Image Quality Comparable to Professional Thermal Cameras

• Image views with more than 10 standard or custom color palettes.
• Never miss any detail with real-time high and low temperature capture.
• Real-time temperature alarm for timely response of abnormal condition.
• Automatic time-lapse capture mode, for unattended operation.
• Easy image and video management through real-time communication.
• Easy to add image annotation for smooth communication.
• Integrated key functions of a professional thermal camera: shooting, measurement, analysis and sharing.
• Optimized Fluke iSee application interfaces and menus, to enhance user experience with easy to access functions.
• Visit the APP Store to download the Fluke iSee thermal camera app.

What's in the Box

• TC01C Thermal Camera
• User manual
