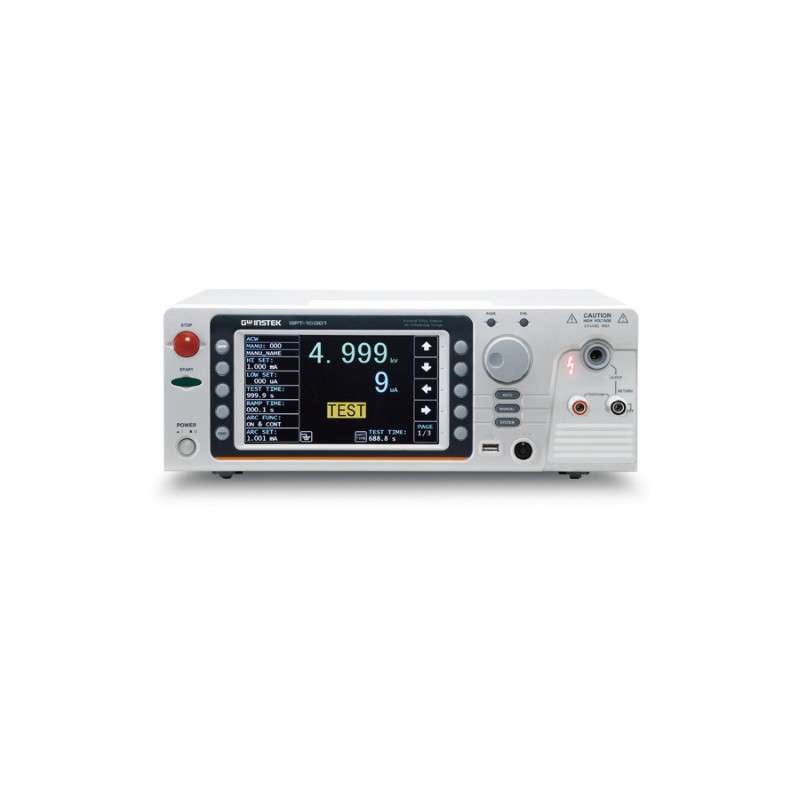

Safety Analyzer, AC/500VA
Hisco #:GPT-15001-50297
MFG #:GPT-15001
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 3048.00 | |
| 3 | 2944.62 | Save |
- Instek’s flagship safety analyzer series
- AC only (0.05 - 5kV)
- Complies with IEC 61010-2-034
- 7”TFT LCD
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47μF
The GPT-15000 is Instek’s new flagship safety analyzer, and the first in the world to comply with IEC 61010-2-034, a safety requirement for measurement, control and laboratory use.
The GPT-15000 is available in four variations, each performing a different set of tests:
- GPT-15001 - AC only
- GPT-15002 - AC/DC
- GPT-15003 - AC/DC/IR
- GPT-15001 - AC/DC/IR/GB
To comply with IEC 61010-2-034 requirements, this series uses a double insulation design for the input power supply and output voltage to enhance user safety. In addition, the retracted on/off switch design and various optional mechanisms for test activation are incorporated to avoid accidental damage to the system or harm to users.
High illumination LED lights and a high volume audio indicator are included to provide warnings of the status of tests or results. Furthermore, the DUT will be automatically discharged to a safe voltage (approximately 30V) after each test to prevent large residual test voltage from causing harm to users.
This series features a 7 inch color TFT LCD and uses a simple, key design style to enable easy operation and clear observation of test results.
In The Box
- Quick Start Guide x 1
- Power cord x 1
- CDx1(complete user manual)
- Interlock Key x 1
- Remote terminal Cable GHT-119 x 1
- Test lead GHT-115 x 1
Product Description
- Instek’s flagship safety analyzer series
- AC only (0.05 - 5kV)
- Complies with IEC 61010-2-034
- 7”TFT LCD
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47μF
The GPT-15000 is Instek’s new flagship safety analyzer, and the first in the world to comply with IEC 61010-2-034, a safety requirement for measurement, control and laboratory use.
The GPT-15000 is available in four variations, each performing a different set of tests:
- GPT-15001 - AC only
- GPT-15002 - AC/DC
- GPT-15003 - AC/DC/IR
- GPT-15001 - AC/DC/IR/GB
To comply with IEC 61010-2-034 requirements, this series uses a double insulation design for the input power supply and output voltage to enhance user safety. In addition, the retracted on/off switch design and various optional mechanisms for test activation are incorporated to avoid accidental damage to the system or harm to users.
High illumination LED lights and a high volume audio indicator are included to provide warnings of the status of tests or results. Furthermore, the DUT will be automatically discharged to a safe voltage (approximately 30V) after each test to prevent large residual test voltage from causing harm to users.
This series features a 7 inch color TFT LCD and uses a simple, key design style to enable easy operation and clear observation of test results.
In The Box
- Quick Start Guide x 1
- Power cord x 1
- CDx1(complete user manual)
- Interlock Key x 1
- Remote terminal Cable GHT-119 x 1
- Test lead GHT-115 x 1
