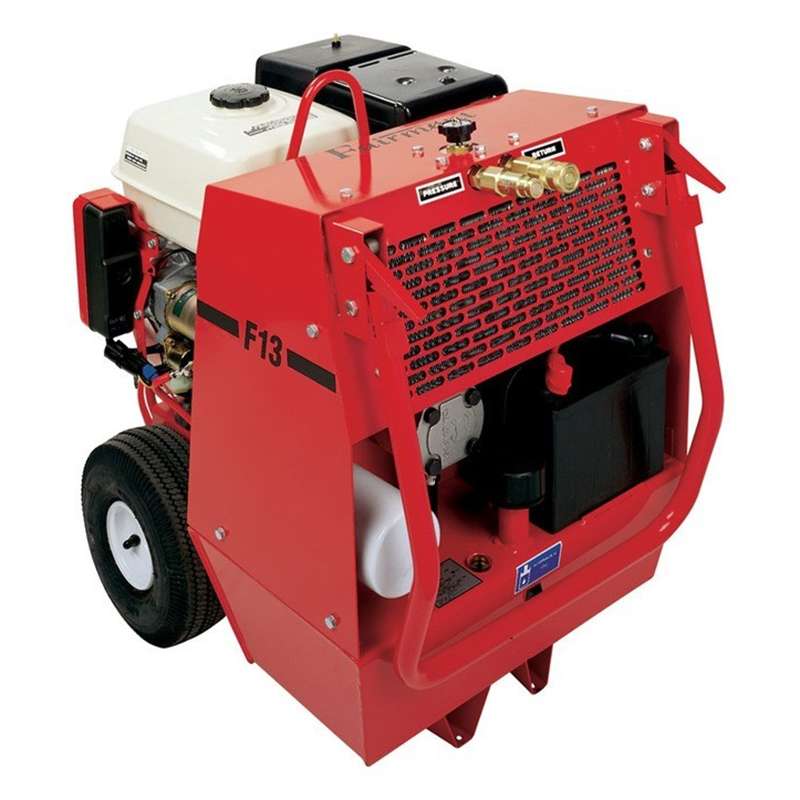

Power Unit, Portable, 13HP

The Greenlee F13 is a Hydraulic Power Unit

• Easy pull recoil start and dependable Honda 4-stroke OHV GX390 gasoline engine with low oil alert and shutdown protection system
• The engine is CARB (California Air Resources Board) certified as well as compliant with upcoming 2011 EPA emissions standards
• Powder-coated, welded steel tubular frame protects components and allows easy access to all service points
• Oversized oil cooler and electric fan ensures cool running
• Large 13 inch (330 mm) no-flat tires ensure easy job site handling and transport over a wide variety of surfaces and soils
• Quick-release telescoping handles
• Hydraulic oil-level site gauge

• Cooling System : Oil Cooler, Electric Fan
• Dry Weight : 168.000 LB (76.000 KG)
• Fuel : Gasoline 1.700 GAL (6.500 L)
• Height (Handle Folded) : 25.500 IN (648.000 MM)
• Horsepower : 13 HP At 3600 RPM (9.7 KW At 3600 RPM)
• Hydraulic Oil Capacity : 1.800 GAL (7.000 L)
• Length : 28.000 IN (710.000 MM)
• Rated Flow : 5 - 8 GPM (19 - 30 LPM)
• Rated Pressure : 2000 PSI (138 BAR)
• Standard : CARB (California Air Resources Board) Certified, 2011 EPA Emissions Standard
• System : Open-Center System
• Tire Type : Large 13.000 IN (330.000 MM) No-Flat Tires
• Width : 23.500 IN (597.000 MM)
