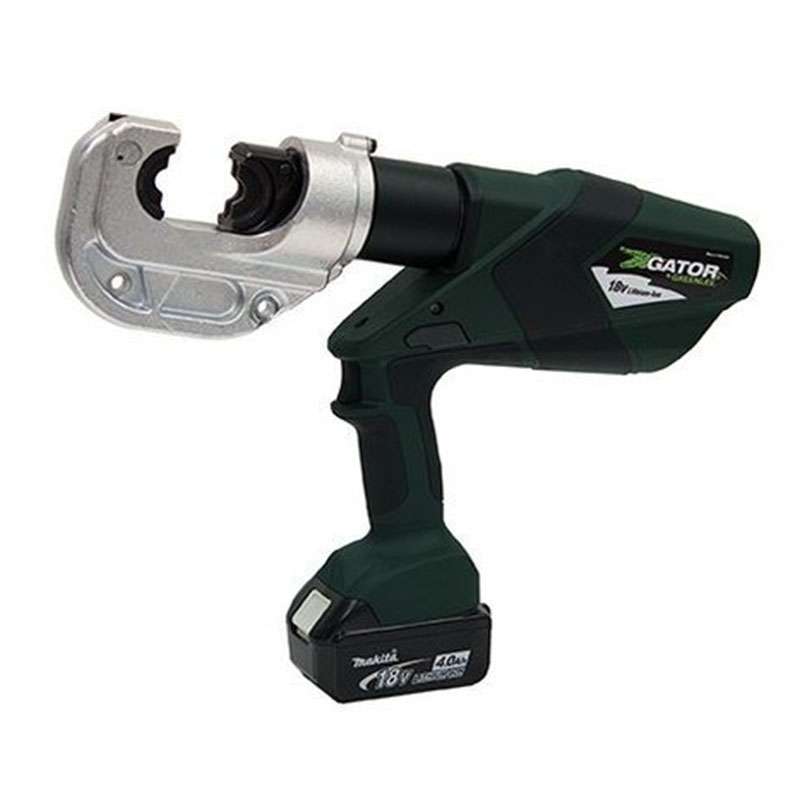

12 Ton Crimper, Li-Ion, Standard, Bare

The Greenlee EK1240LXB is a Gator Crimper.

• Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
• Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
• Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240KL uses Kearney PH2 style crimping dies
• Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick
• The outer layer is black, and the inner layer is red.
• U.S. Patents #6,206,663 and #6,065,326

• Sub Brand : Gator
• Type : Die style crimper
• Application : 12 Ton Crimping
• Standard : C/US UL Listed
• Wire Size : 8 AWG - 750 Kcmil Cu & Al
• Opening Size : 1.65 IN (42 mm)
• Overall Length : 16.25 IN (413 mm)
• Crimping Force : 24,000 lbs. (106 kN)
• Crimping Capacity : 750 Kcmil (MCM) Cu & Al
• Connector Type : Color-coded lugs and splices
• Handle Type : Pistol Style with over molded rubber grip
