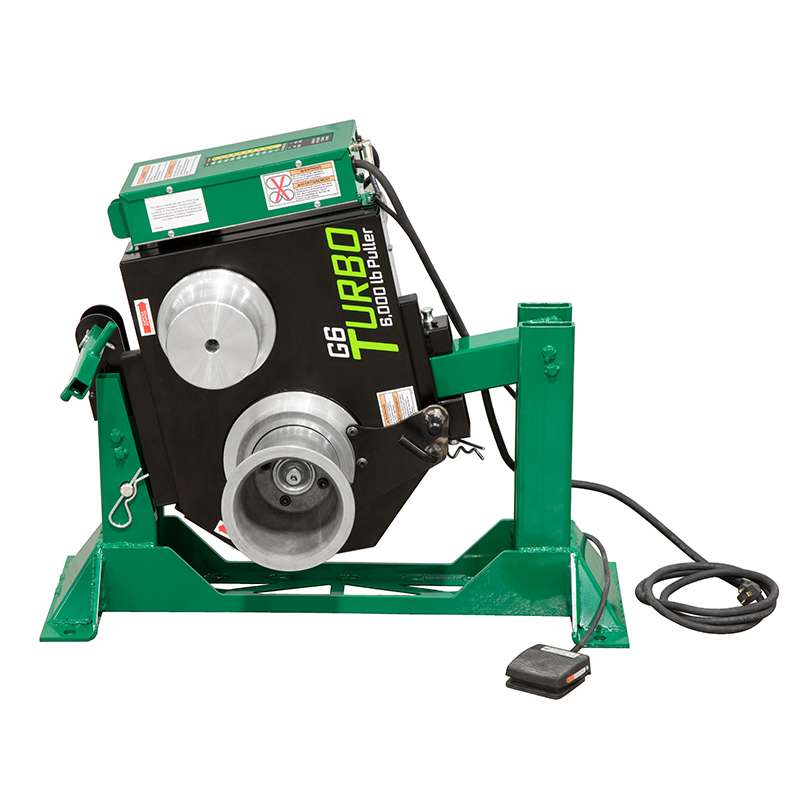

Floor Mount and Puller, G6, Packaged
Hisco #:G6-F-65663
MFG #:G6-F
Our Price: $7,790.37 EA
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 7790.37 | |
| 3 | 7625.97 | Save |
The Greenlee G6-F is a Cable Puller
Greenlee G6-F Features:- Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN)
- Drive Motor : 120 VAC, 50/60 Hz, 12 amps
- No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.36 m/min)
- No Load Secondary Capstan Speed : High Speed 68 ft/min (20.74 m/min), Low Speed 35 ft/min (10.68 m/min)
- Pulling Force : 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary
- Floor Mount setup
- Includes : Force Gauge and foot switch
- Type : Cable Puller
- Application : Pulling Cable
- Voltage Rating : 120 Volts AC at 50/60 Hz
- Amperage Rating : 20 Amps
- Mounting : Floor Mount
Product Description
Technical Information
Back to top
Product Description
The Greenlee G6-F is a Cable Puller
Greenlee G6-F Features:- Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN)
- Drive Motor : 120 VAC, 50/60 Hz, 12 amps
- No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.36 m/min)
- No Load Secondary Capstan Speed : High Speed 68 ft/min (20.74 m/min), Low Speed 35 ft/min (10.68 m/min)
- Pulling Force : 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary
- Floor Mount setup
- Includes : Force Gauge and foot switch
- Type : Cable Puller
- Application : Pulling Cable
- Voltage Rating : 120 Volts AC at 50/60 Hz
- Amperage Rating : 20 Amps
- Mounting : Floor Mount
Technical Information
Brand: Greenlee
Weight: 241
Country Of Origin: US
Harmonized Code: 8431.10.0090
UPC Code: 783310086314
