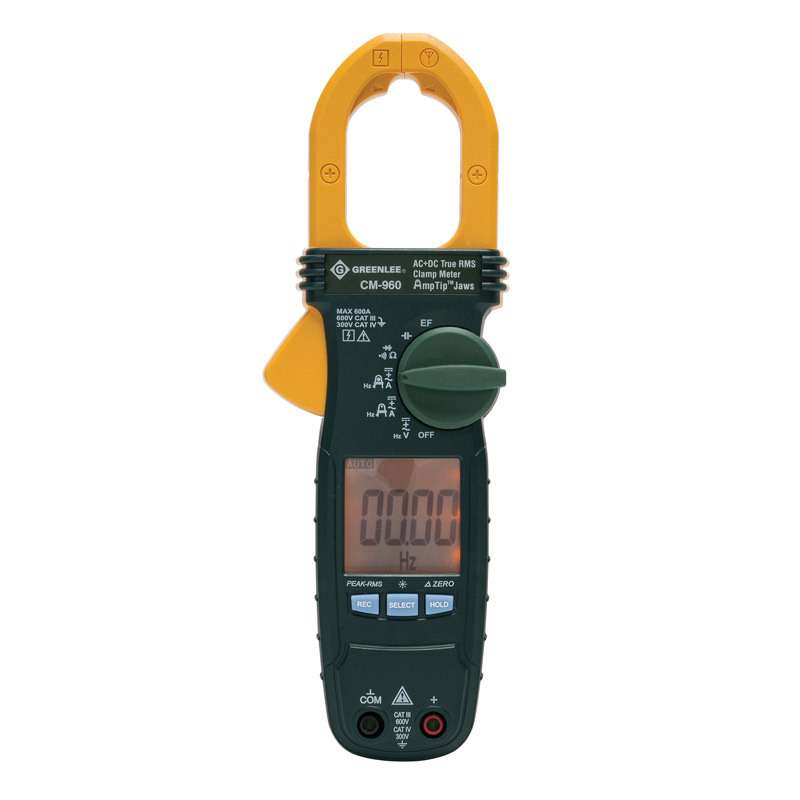

True RMS AC/DC Clamp Meter with Backlit Display

The Greenlee CM-960 is a clamp meter with a maximum ac current measurement of 600.

• Measures AC+DC current
• AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
• Peak-RMS measures motor inrush current
• Backlight
• relative mode for added versatility


• Product Type: Clamp Meter
• Clamp Meter Type: Current and Voltage Tester
• Functions Measured: AC Voltage DC Voltage AC Current DC Current Resistance Continuity Frequency Capacitance
• Display Type: LCD
• Power Source: Battery
• Maximum AC Current Measurement: 600A
• Minimum AC Current Measurement: 60A
• Maximum AC Voltage Measurement: 600V
• Maximum DC Current Measurement: 600A
• Minimum DC Current Measurement: 60A
• Maximum DC Voltage Measurement: 600V
• Maximum Resistance Measurement: 60kΩ
• Minimum Resistance Measurement: 600Ω
• Maximum Temperature Measurement: +752°F
• Minimum Temperature Measurement: -40°F
• Maximum Capacitance Measurement: 2500µF
• Minimum Capacitance Measurement: 200µF
• Best AC Current Accuracy: ±2%
• Best AC Voltage Accuracy: ±1%
• Best DC Current Accuracy: ±2%
• Best DC Voltage Accuracy: ±1%
• Best Resistance Measurement Accuracy: ±1%
• Best Temperature Measurement Accuracy: ±1%
• Best Capacitance Measurement Accuracy: ±2%
• True RMS (Yes/No): Yes
• Jaw Capacity: 1.18in
• Battery Type: AAA Battery
• Safety Category: CAT IV 300 V CAT III 600 V
• Dimensions: 8.7 x 3 x 1.4in
• Safety Category Level: CAT III CAT IV
• Width: 3in
• Minimum Operating Temperature: +32°F
• Height: 1.4in
• Length: 8.7in
• Model Number: CM-960
• Maximum Operating Temperature: +104°F
• Safety Category Voltage: 300 600V
