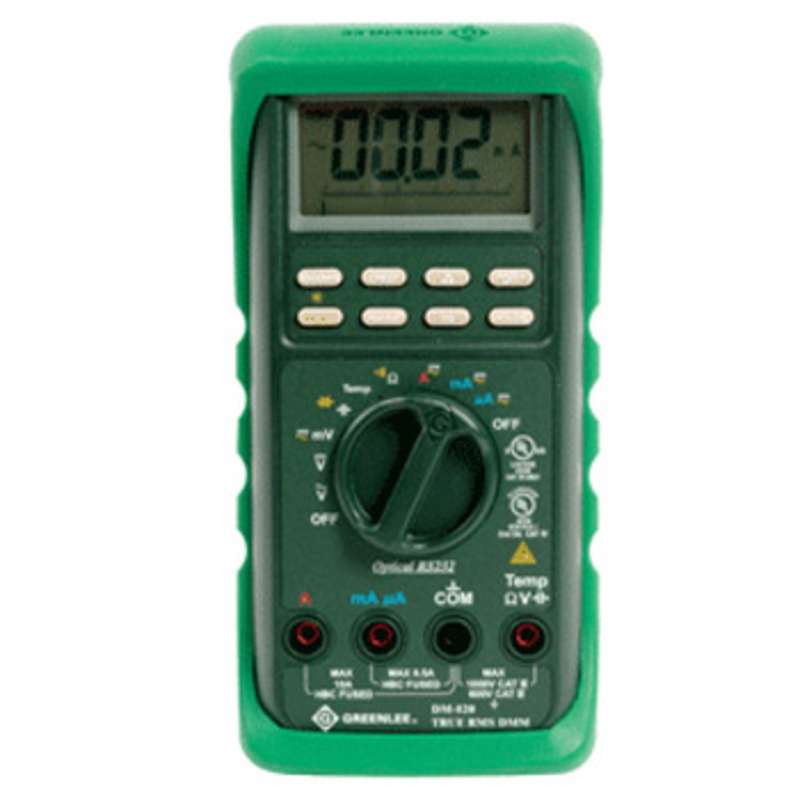

Digital Multimeter with Auto and Manual Ranging Operation and Non-Contact Voltage Detection

The Greenlee DM-820A is a digital multimeter with a minimum ac current measurement of 600.

• True RMS for no-compromise accuracy
• Backlit LCD With Dual 1, Count Displays
• Beep Jack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
• Automatic And Manual Range Selection
• Relative Offset Mode to See Changes In Measurements


• Product Type: Digital Multimeter
• Functions Measured: AC Voltage DC Voltage AC Current DC Current Resistance Capacitance Frequency Duty Cycle Temperature Diode Check Continuity Check
• Display Type: LCD
• Power Source: Battery
• Maximum AC Current Measurement: 10A
• Minimum AC Current Measurement: 600mA
• Maximum AC Voltage Measurement: 999.9V
• Minimum AC Voltage Measurement: 60mV
• Maximum DC Current Measurement: 10A
• Minimum DC Current Measurement: 600µA
• Maximum DC Voltage Measurement: 999.9V
• Minimum DC Voltage Measurement: 60mV
• Maximum Resistance Measurement: 60MΩ
• Minimum Resistance Measurement: 600Ω
• Maximum Temperature Measurement: +1832°F
• Minimum Temperature Measurement: -58°F
• Maximum Capacitance Measurement: 25mF
• Minimum Capacitance Measurement: 60nF
• Best AC Current Accuracy: ±0.8%
• Best AC Voltage Accuracy: ±3%
• Best DC Current Accuracy: ±0.2%
• Best DC Voltage Accuracy: ±0.08%
• Best Resistance Measurement Accuracy: ±1.5%
• Best Temperature Measurement Accuracy: ±0.3%
• Best Capacitance Measurement Accuracy: ±6.5%
• Battery Type: 9 V Battery
• Safety Category: CAT IV 1000 V
• Safety Category Level: CAT IV
• Minimum Operating Temperature: +32°F
• Model Number: DM-820A
• Maximum Operating Temperature: +113°F
• Safety Category Voltage: 1000V
