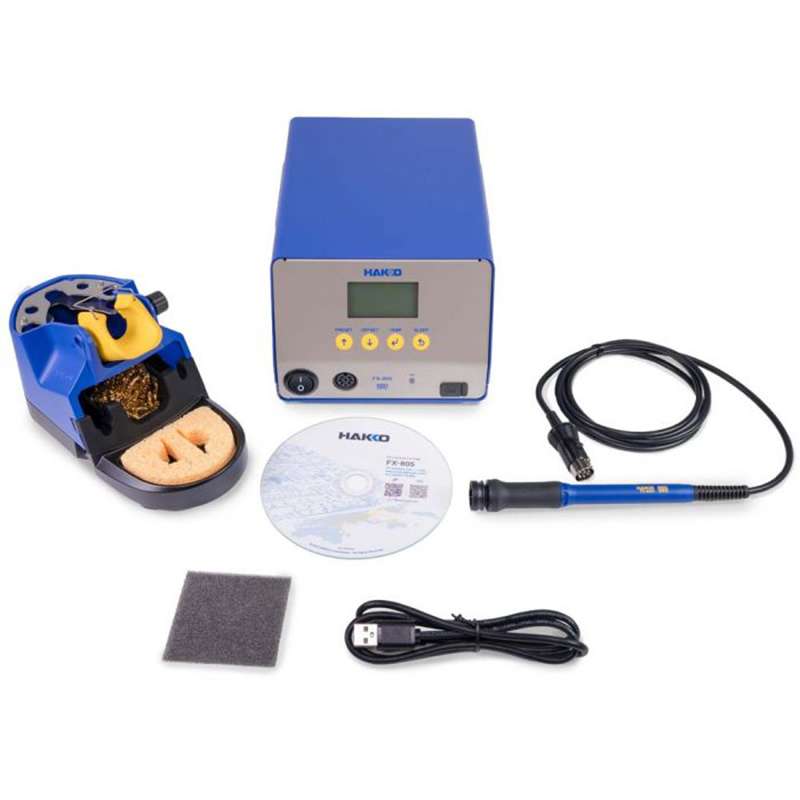

FX-805 Ultra Heavy Duty (UHD) Soldering Station w/o Tip

The Hakko FX805-03 is an FX-805 Ultra Heavy-Duty Soldering Station is the ultimate solution in the Large Current Era. Specifically designed for large mass components with high current, large transformers, and difficult heat sinks, nothing gives you the power quite like Hakko. A 400W powered Ultra Heavy-Duty soldering station with new software capabilities, new T37 tips, and and is backwards compatible to work with T33 Tips.

• Temp Range 120°- 940°F (50°C - 500°C)
• HAKKO Control Software
• Up to 6 Programmable Preset Temps
• Process Control Lockout with Password Protection

• Model Name: FX-805
• Part No.: FX805-03
• Output Voltage: 30V
• Power Consumption: 460W
• Temperature Range: 120°- 940°F (50°C - 500°C)
• Temperature Stability: ±9°F (±5°C)
• Outer Dimensions: 5.7 x 4.2 x 8.3 in. (143 x 107 x 218 mm)
• Weight (w/o cord): 8.3 lb. (3.9 kg.)
• ESD Safe: Yes
• Soldering Iron: Handpiece
• Model Number: FX-8004
• Part Number: FX8004-81
• Power Consumption: 390W (30V)
• Tip-to-Ground Resistance: < 2 OHMS
• Tip-to-Ground Potential: < 2mV
• Heater: HAKKO Composite CeramicTM
• Length of Cord: 4 ft. (1.2 m) with T33-BC4 tip installed
Total Length (w/o cord) 9.0 in. (244 mm) with T33-BC4 tip installed Weight (w/o cord) 0.11 lb. (50g) Tips (not included) T37 Series
