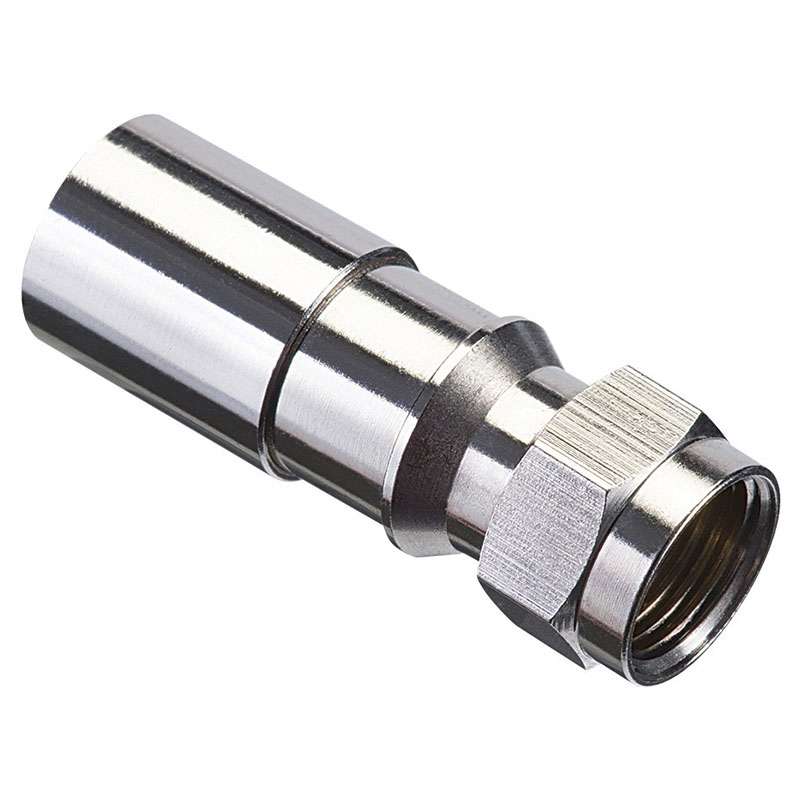

RTQ XR RG-6 F Compression Connector, 10/Card
Hisco #:92-651-25300
MFG #:92-651
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 12.79 | |
| 3 | 12.31 | Save |
The Ideal 92-651
RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.
RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.
All RTQ™ connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.
Features:
- Connector Model: 6FRTQXR
- Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
- Center conductor range: All
- Dielectric diameter range: .168” - .183”
- Outer jacket diameter range: .226” - .310”
- Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
- Recommended cable prep/stripping tool: 45-605 PrepPRO™; 45-526
- Recommended compression tools: 30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
- RTQ™ XR™ design allows Regular/Tri/Quad shield and plenum cables to work in a single connector – no need to carry cable specific connectors
- Designed for use in cable and satellite TV installations
- WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
- Industry standard 21mm compressed length – works with non-IDEAL compression tools
- Return loss: >30dB up to 3 GHz
- All brass, with nickel plated bodies
- Designed for optimal performance on 75Ω coaxial cables
- Frequency range: 0 MHz to 3 GHz
- >40 pounds cable retention on all models
- 7/16” nut diameter with 3/8-32 thread
Product Description
The Ideal 92-651
RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.
RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.
All RTQ™ connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.
Features:
- Connector Model: 6FRTQXR
- Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
- Center conductor range: All
- Dielectric diameter range: .168” - .183”
- Outer jacket diameter range: .226” - .310”
- Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
- Recommended cable prep/stripping tool: 45-605 PrepPRO™; 45-526
- Recommended compression tools: 30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
- RTQ™ XR™ design allows Regular/Tri/Quad shield and plenum cables to work in a single connector – no need to carry cable specific connectors
- Designed for use in cable and satellite TV installations
- WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
- Industry standard 21mm compressed length – works with non-IDEAL compression tools
- Return loss: >30dB up to 3 GHz
- All brass, with nickel plated bodies
- Designed for optimal performance on 75Ω coaxial cables
- Frequency range: 0 MHz to 3 GHz
- >40 pounds cable retention on all models
- 7/16” nut diameter with 3/8-32 thread
