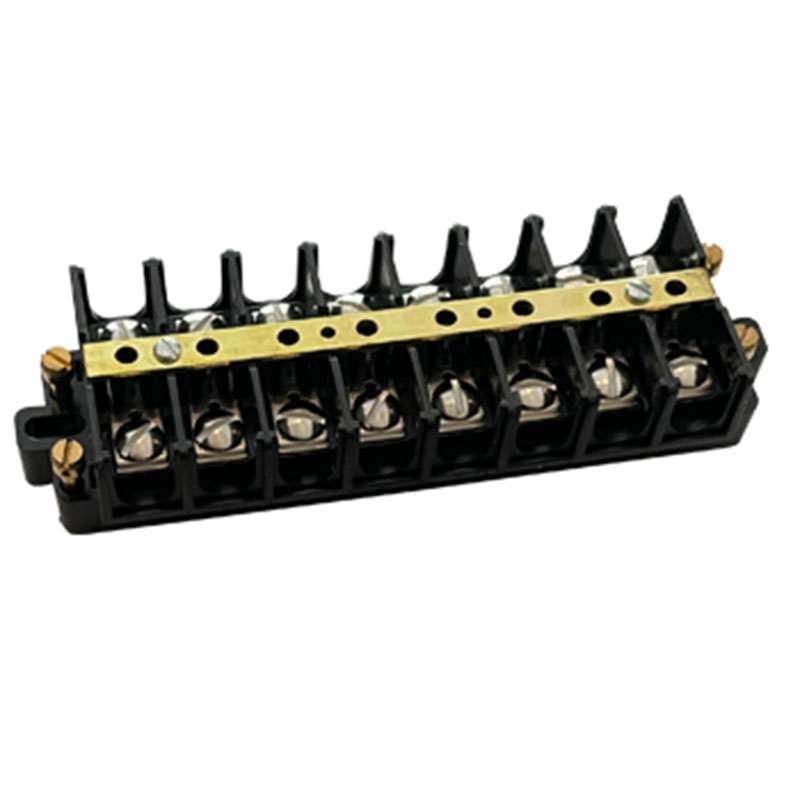

Terminal Strip, Shorting Block, 8-Pole, 22-6 AWG

The Ideal 89-509

Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.

Features:

• .625 (15.88mm) center spacing
• Accepts wire sizes from 6 through 22 AWG Cu
• #10-32 Philslot, nickel-plated brass terminal screws
• Recommended torque: 20 in.-lb.
• Heavy-duty, corrosion-resistant screws, surface plates, and optional hardware
• Rugged polyester thermoplastic base (UL Rated 94V-0)
• UL Recognized (E82048) and CSA Certified (LR15364)
• Ratings: 60A/600V UL Listed, CSA Certified (Max. rating achieved with #6 AWG Cu wire crimped to ring terminals)
