DMPSD Station 4 Tool with DT530, 120V
Hisco #:DMPSD-1QA-30348
MFG #:DMPSD-1QA
Our Price: $5,100.00 EA
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 16 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 5100.00 | |
| 3 | 4927.02 | Save |

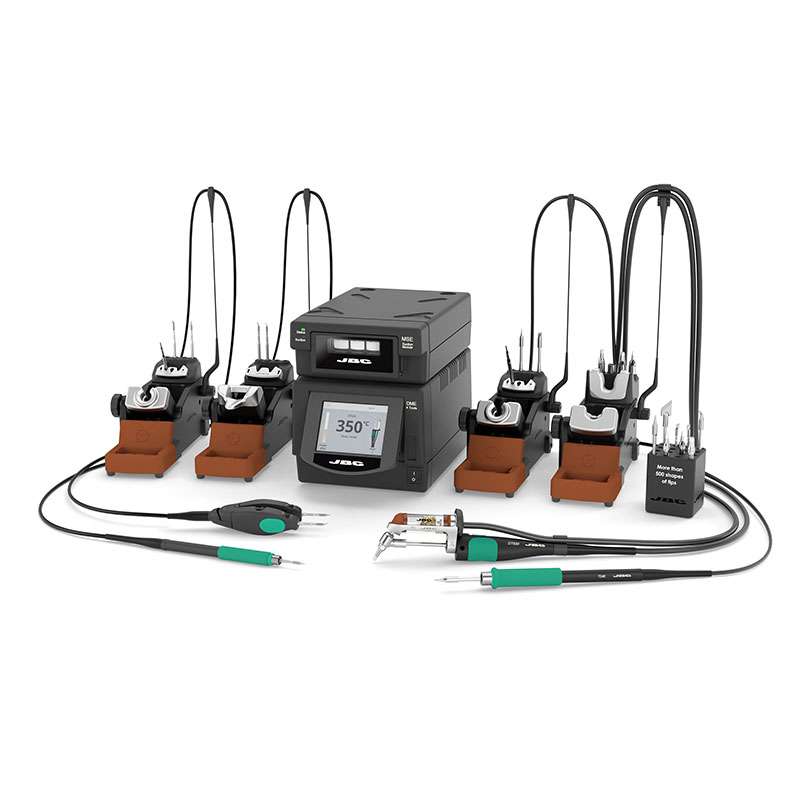

The JBC DMPSD-1QA is a four channel rework and desoldering with four tools. This system can manage up to four tools simultaneously and is compatible with a wide variety of JBC handpieces and peripherals.
Please note: tips are sold separately with the exception of the DT530 desoldering iron, which has a D530003 nozzle already installed
JBC DMPSD-1QA Features:- Four channel rework system
- Soldering and vacuum functionality
- Includes DME four tool control unit
- Includes AM120 adjustable micro tweezer (tips sold separately)
- Includes T210 precision iron (tips sold separately)
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF / Meets and exceed IPC J-STD-001F
- Vacuum: 85% / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Temperature accuracy: ±3% using reference cartridge
- ESD safe: Meet ANSI/ESD S20.20-2021
- Equipotential bonding: Connection to EPA
- Temp. adjustment: ±50ºC / ±90ºF Through station settings menu
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
Product Description
Technical Information
Back to top
Product Description
The JBC DMPSD-1QA is a four channel rework and desoldering with four tools. This system can manage up to four tools simultaneously and is compatible with a wide variety of JBC handpieces and peripherals.
Please note: tips are sold separately with the exception of the DT530 desoldering iron, which has a D530003 nozzle already installed
JBC DMPSD-1QA Features:- Four channel rework system
- Soldering and vacuum functionality
- Includes DME four tool control unit
- Includes AM120 adjustable micro tweezer (tips sold separately)
- Includes T210 precision iron (tips sold separately)
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF / Meets and exceed IPC J-STD-001F
- Vacuum: 85% / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Temperature accuracy: ±3% using reference cartridge
- ESD safe: Meet ANSI/ESD S20.20-2021
- Equipotential bonding: Connection to EPA
- Temp. adjustment: ±50ºC / ±90ºF Through station settings menu
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
Technical Information
Brand: JBC
Weight: 43.651
Country Of Origin: ES
Harmonized Code: 8515.11.0000
UPC Code: 8427327657779
