S-Z Series Binocular Microscope 20mm, BB Stand, Quadrant LED Light
Hisco #:20716BB-53055
MFG #:20716BB
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 1537.00 | |
| 3 | 1484.87 | Save |

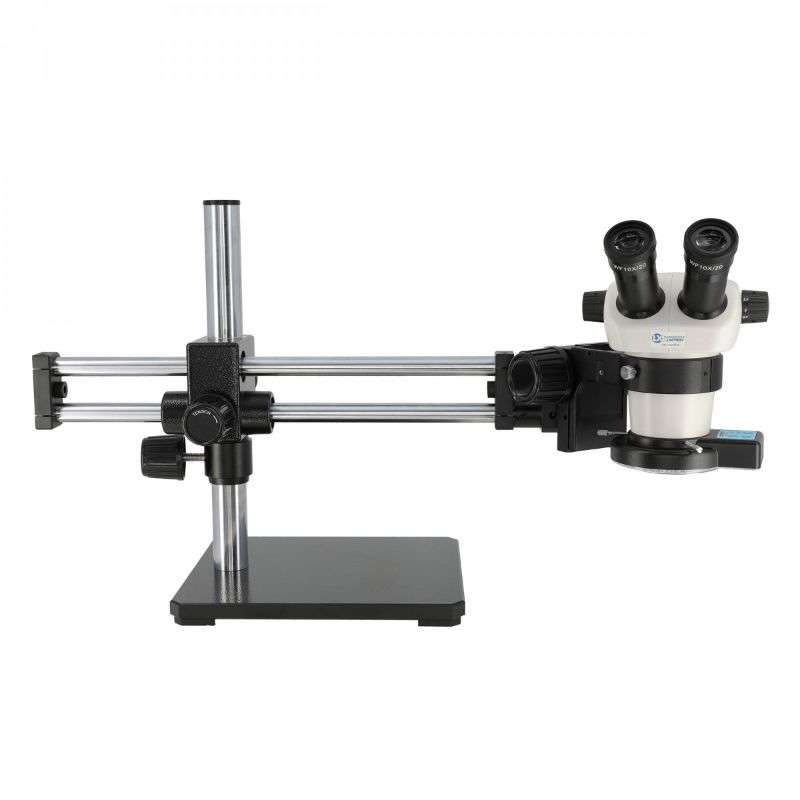

The LX Microscopes by UNITRON 20716BB is a fully featured binocular microscope system with a polymer body. It’s ideal for economically budgeted production applications. Intended and designed for lighter duty usage in rework, assembly, and limited inspection process. This system allows the user to share inspection results for communicating or archiving electronically. This configuration presents a ball-bearing boom stand with base 22.5” horizontal reach, 15” solid aluminum vertical post, and a 11 1/8" x 10 1/4" x 7/8" base.
LX Microscopes by UNITRON 20716BB Features:- Features a 20mm optics system that fits many applications where higher magnification isn't required
- Quadrant LED ring light with sectional lighting control permits the user to direct the light from 4 seperate quadrants and 10-step variable intensity light control
- High-quality achromatic lenses with anti-reflective coatings for better visual clarity
- Binocular viewing body with eyetubes inclined at 45°
- WF10x/20mm field of view focusing eyepieces with roll down eye guards
- Standard magnification range 7-30X (with 10X eyepieces)
- Anti-mold and airtight design
- Specification number one goes here
- Working Distance: 97mm
- Construction: Sealed Polymer body
- Stand: Ball-bearing stand
- Reach: 22.5" Horizontal Reach
- Color Temperature: 6400 K
Product Description
The LX Microscopes by UNITRON 20716BB is a fully featured binocular microscope system with a polymer body. It’s ideal for economically budgeted production applications. Intended and designed for lighter duty usage in rework, assembly, and limited inspection process. This system allows the user to share inspection results for communicating or archiving electronically. This configuration presents a ball-bearing boom stand with base 22.5” horizontal reach, 15” solid aluminum vertical post, and a 11 1/8" x 10 1/4" x 7/8" base.
LX Microscopes by UNITRON 20716BB Features:- Features a 20mm optics system that fits many applications where higher magnification isn't required
- Quadrant LED ring light with sectional lighting control permits the user to direct the light from 4 seperate quadrants and 10-step variable intensity light control
- High-quality achromatic lenses with anti-reflective coatings for better visual clarity
- Binocular viewing body with eyetubes inclined at 45°
- WF10x/20mm field of view focusing eyepieces with roll down eye guards
- Standard magnification range 7-30X (with 10X eyepieces)
- Anti-mold and airtight design
- Specification number one goes here
- Working Distance: 97mm
- Construction: Sealed Polymer body
- Stand: Ball-bearing stand
- Reach: 22.5" Horizontal Reach
- Color Temperature: 6400 K
