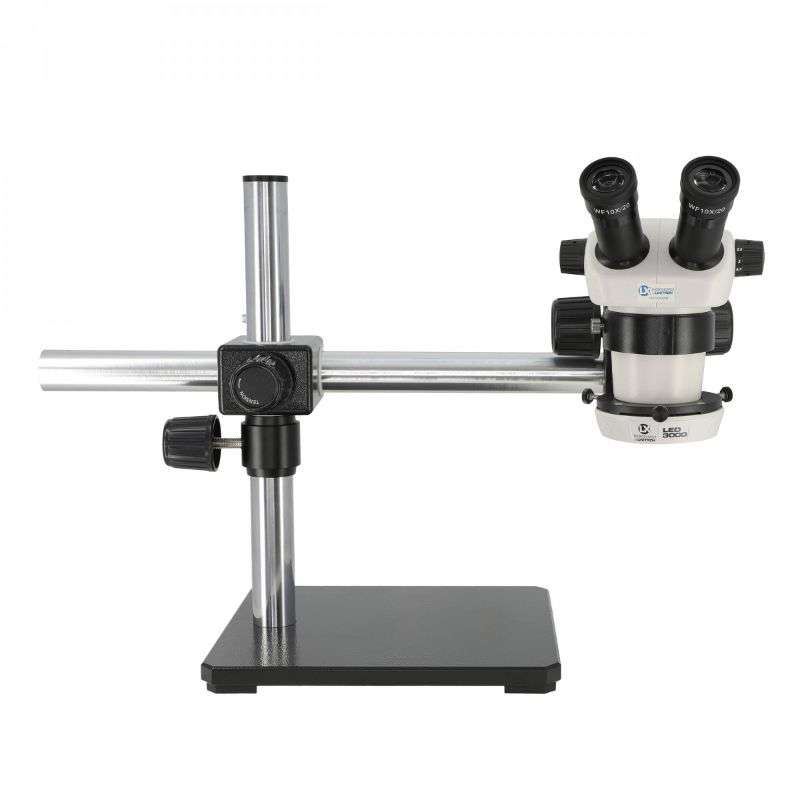

S-Z Series Binocular Microscope 20mm, Single Boom, LED-3000 Ring Light
Hisco #:20780-53055
MFG #:20780
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 1497.99 | |
| 3 | 1447.18 | Save |
The LX Microscopes by UNITRON 20780 is a fully featured binocular microscope system with a polymer body. It’s ideal for economically budgeted production applications. Intended and designed for lighter duty usage in rework, assembly, and limited inspection process.This system allows the user to share inspection results for communicating or archiving electronically. This configuration presents a single arm boom stand with base 22" Horizontal reach with solid aluminum single-arm, 20” solid vertical post and a 15” x 10” x 1” solid steel base.
LX Microscopes by UNITRON 20780 Features:- Features a 20mm optics system that fits many applications where higher magnification isn't required
- LED-3000 ESD-Safe ring light with variable intensity control and produces 3600 foot-candles at a 4.5" working distance
- High-quality achromatic lenses with anti-reflective coatings for better visual clarity
- Binocular viewing body with eyetubes inclined at 45°
- WF10x/20mm field of view focusing eyepieces with roll down eye guards
- Standard magnification range 7-30X (with 10X eyepieces)
- Anti-mold and airtight design
- Working Distance: 97mm
- Construction: Sealed Polymer Body
- Stand: Single Arm Boom Stand
- Ring Light: LED-3000 ESD Safe
- Reach: 22" Horizontal Reach
- Color Temperature: 6000 K
- Lamp Life: 50,000 hour rated
Product Description
The LX Microscopes by UNITRON 20780 is a fully featured binocular microscope system with a polymer body. It’s ideal for economically budgeted production applications. Intended and designed for lighter duty usage in rework, assembly, and limited inspection process.This system allows the user to share inspection results for communicating or archiving electronically. This configuration presents a single arm boom stand with base 22" Horizontal reach with solid aluminum single-arm, 20” solid vertical post and a 15” x 10” x 1” solid steel base.
LX Microscopes by UNITRON 20780 Features:- Features a 20mm optics system that fits many applications where higher magnification isn't required
- LED-3000 ESD-Safe ring light with variable intensity control and produces 3600 foot-candles at a 4.5" working distance
- High-quality achromatic lenses with anti-reflective coatings for better visual clarity
- Binocular viewing body with eyetubes inclined at 45°
- WF10x/20mm field of view focusing eyepieces with roll down eye guards
- Standard magnification range 7-30X (with 10X eyepieces)
- Anti-mold and airtight design
- Working Distance: 97mm
- Construction: Sealed Polymer Body
- Stand: Single Arm Boom Stand
- Ring Light: LED-3000 ESD Safe
- Reach: 22" Horizontal Reach
- Color Temperature: 6000 K
- Lamp Life: 50,000 hour rated
