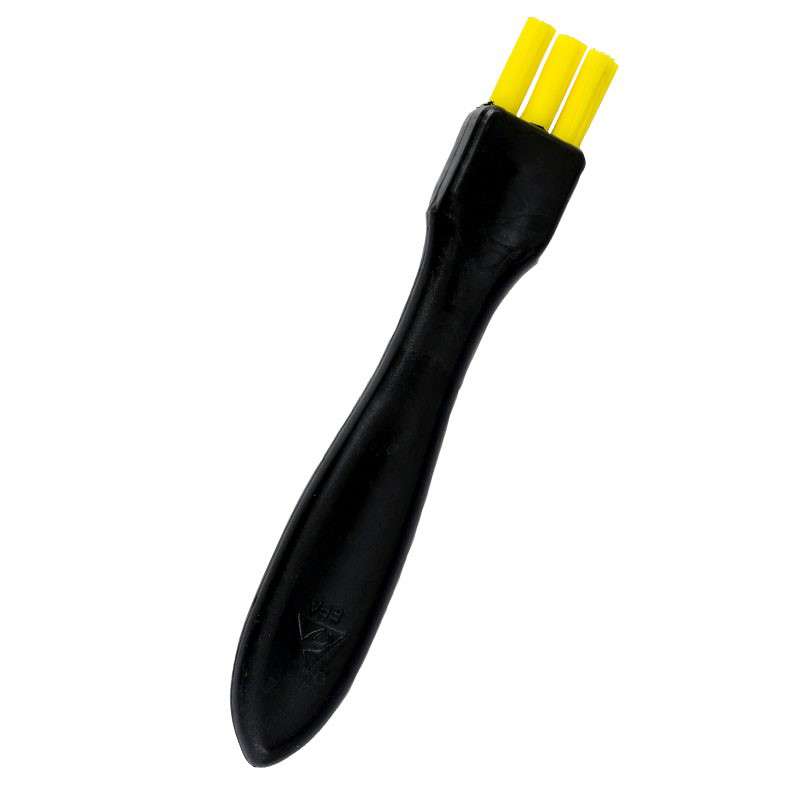

ESD Brush, Dissipative, Flat Handle, Yellow Nylon Hard Bristles, 3/4 Inch
Hisco #:36094-34174
MFG #:36094
Our Price: $22.25 BH
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 22.25 | |
| 3 | 21.17 | Save |
The Menda 36094 is an ESD Brush ideal for removing dust, dirt, and foreign object debris from printed circuit boards (PCB) and other static sensitive components. Allows thorough cleaning of ESD sensitive assemblies without the danger of high charges generated by conventional brushes when held by grounded personnel.
Menda 36094 Features:- Dissipative fibers should be selected if the product or assembly may be holding a charge and Charged Device Model (CDM) failures are a concern
- High quality, permanently dissipative bristles made of type 6.12 Nylon filament – which will result in no coating or peeling of the static dissipative additive
- Conductive carbon loaded polypropylene handle
- Highly resilient, durable and abrasion resistant
- Hot stamped with ESD protective symbol
- Brushes can be used with IPA (isopropyl alcohol)
- Yellow bristles are highly identifiable to avoid FOD (Foreign Object Debris)
- Brand: Menda
- Product Type: ESD Brush
- Handle Type: Flat
- Color: Yellow/Black
- Bristle Length: 3/4” (19 mm)
- Overall Length: 5-3/4” (146 mm)
- RTT Resistance: 1 x 10^9 to <1 x 10^11 ohms tested per modified ANSI/ESD S4.1
Product Description
Technical Information
Back to top
Product Description
The Menda 36094 is an ESD Brush ideal for removing dust, dirt, and foreign object debris from printed circuit boards (PCB) and other static sensitive components. Allows thorough cleaning of ESD sensitive assemblies without the danger of high charges generated by conventional brushes when held by grounded personnel.
Menda 36094 Features:- Dissipative fibers should be selected if the product or assembly may be holding a charge and Charged Device Model (CDM) failures are a concern
- High quality, permanently dissipative bristles made of type 6.12 Nylon filament – which will result in no coating or peeling of the static dissipative additive
- Conductive carbon loaded polypropylene handle
- Highly resilient, durable and abrasion resistant
- Hot stamped with ESD protective symbol
- Brushes can be used with IPA (isopropyl alcohol)
- Yellow bristles are highly identifiable to avoid FOD (Foreign Object Debris)
- Brand: Menda
- Product Type: ESD Brush
- Handle Type: Flat
- Color: Yellow/Black
- Bristle Length: 3/4” (19 mm)
- Overall Length: 5-3/4” (146 mm)
- RTT Resistance: 1 x 10^9 to <1 x 10^11 ohms tested per modified ANSI/ESD S4.1
Technical Information
Brand: Menda
Weight: 0.062
Country Of Origin: IL
Harmonized Code: 9603.90.8050
