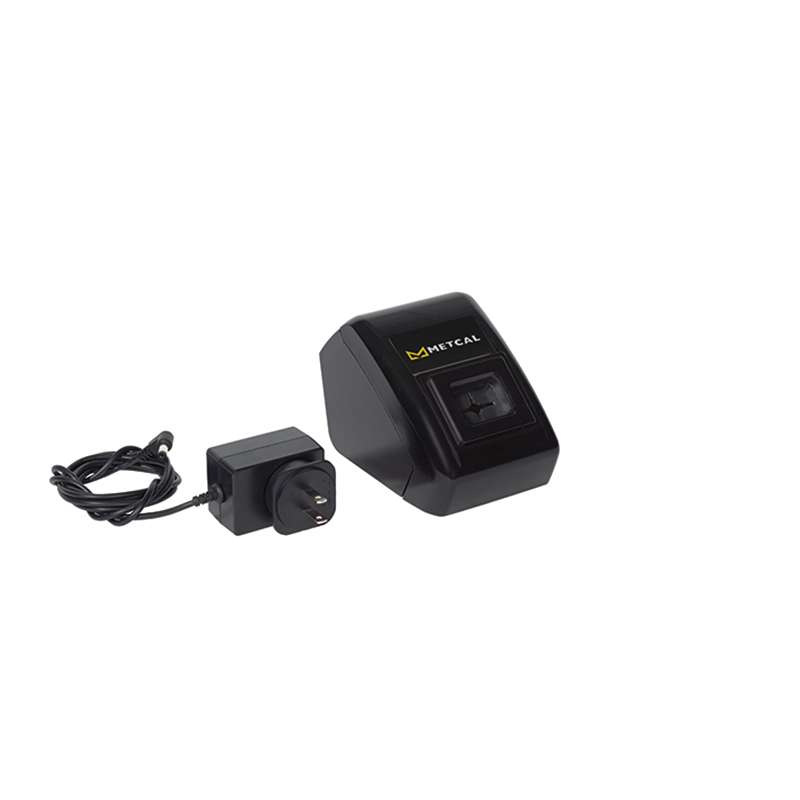

ESD-Safe AC-STC Series Solder Tip Cleaner

< p>The Metcal AC-STC is an ESD-safe solder tip cleaner designed to remove oxidation and extend the life of the solder tip. By placing the solder tip into the opening, the tip cleaner automatically activates saving the operator time. A replaceable brush system pulls excess solder away from the tip into a removable collection tray for disposal while removing oxidation from the tip. The splashguard prevents debris from escaping the collection area.

Metcal AC-STC Features:

• Contactless operation
• Compact footprint
• Replaceable brush system
• Universal Brush System
• ESD-Safe
• Quiet operation

Metcal AC-STC Specifications:

• Ambient Operating Temperature: 10 to 40­­°C
• Input Line Voltage: 24 VDC
• Certifications: cNRTLus, CE, RoHS + WEEE
• Surface Resistivity: 10⁶ - 10¹¹ Ohms/Sq
• Dimensions: 14cm x 8.5 cm x 10 cm
• Weight: 0.83 kg (1.8 lbs)
• Brush speed: 115 rpm
• Brush Diameter: 25mm
