GT90 Soldering Station and Power Adapter, 90 Watt
Hisco #:GT90-33709
MFG #:GT90
Our Price: $220.00 EA
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 10 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 220.00 | |
| 5 | 217.29 | Save |
| 15 | 214.64 | Save |

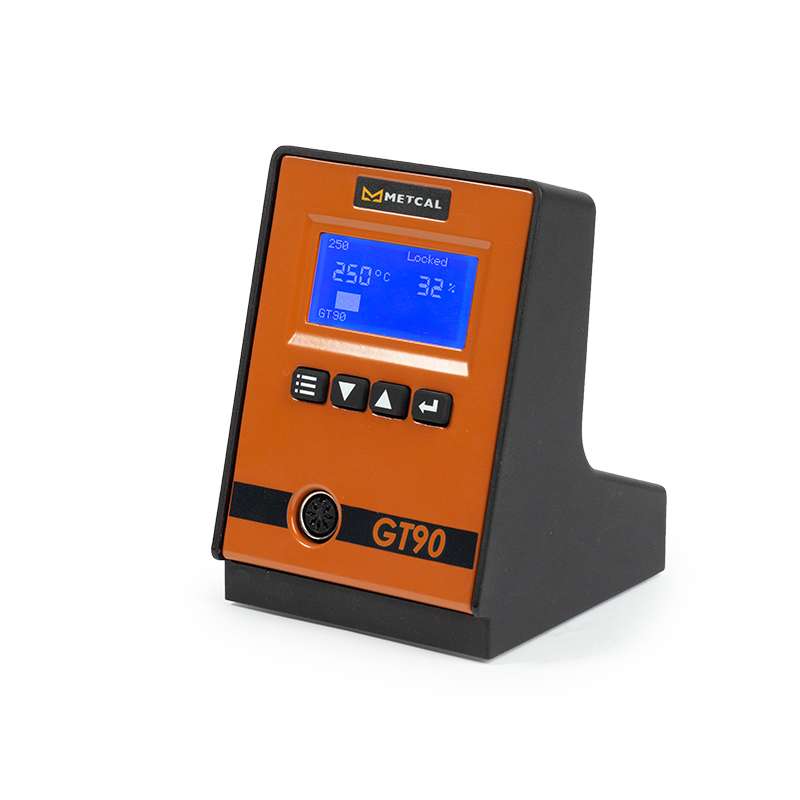

The Metcal GT90 is an adjustable temperature station that uses inductive technology as the heating mechanism. This includes a soldering station only.
Metcal GT90 Features:- 90W Power Station
- Adjustable temperature ranges from 200 to 450°C (392 to 842° F
- Wide variety of cartridge and tip options
- Patented Chip-in-Cartridge technology
- Compact size due to external power source
- Universal power input
- Intuitive user interface
- Programmable standby and sleep settings
- Easy to read 2.5" display
- Field upgradeable firmware using a USB memory stick
- Soldering Temperature Range: 200 to 450°C
- Input Line Voltage: 100 - 240 VAC (120 VAC for U.S.)
- Input Frequency: 50 / 60 Hz
- Power input: 90 W Max
- Dimensions: (w x d x h): 4.3 x 4.9 x 6.1"
- Weight of Station w/ Power Adapter
- Communications: 1 x USB A
- Standby Timer: 10 - 480 seconds
- Sleep Timer: 1 - 100 minutes
- Free Range Tip Temperature Adjustment: Yes
- Tip Temperature Presets: 3
- Tip-to-Ground Potential / Resistance: < 2 mV / < 2 ohms
- Tip Temperature Accuracy: Meets or exceeds IPC-J-STD
- Surface Resistivity: 105 - 109
- Certifications: CE, TUV
- Power Station Warranty: 1 Year
- Country of Origin: China
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Metcal GT90 is an adjustable temperature station that uses inductive technology as the heating mechanism. This includes a soldering station only.
Metcal GT90 Features:- 90W Power Station
- Adjustable temperature ranges from 200 to 450°C (392 to 842° F
- Wide variety of cartridge and tip options
- Patented Chip-in-Cartridge technology
- Compact size due to external power source
- Universal power input
- Intuitive user interface
- Programmable standby and sleep settings
- Easy to read 2.5" display
- Field upgradeable firmware using a USB memory stick
- Soldering Temperature Range: 200 to 450°C
- Input Line Voltage: 100 - 240 VAC (120 VAC for U.S.)
- Input Frequency: 50 / 60 Hz
- Power input: 90 W Max
- Dimensions: (w x d x h): 4.3 x 4.9 x 6.1"
- Weight of Station w/ Power Adapter
- Communications: 1 x USB A
- Standby Timer: 10 - 480 seconds
- Sleep Timer: 1 - 100 minutes
- Free Range Tip Temperature Adjustment: Yes
- Tip Temperature Presets: 3
- Tip-to-Ground Potential / Resistance: < 2 mV / < 2 ohms
- Tip Temperature Accuracy: Meets or exceeds IPC-J-STD
- Surface Resistivity: 105 - 109
- Certifications: CE, TUV
- Power Station Warranty: 1 Year
- Country of Origin: China
Technical Information
Brand: Metcal
Weight: 4.012
Country Of Origin: CN
Harmonized Code: 8515.90.4000
UPC Code: 122000061251
