Flow Sensor, Fixed Length Insertion Paddlewheel, 5 Vdc to 18 Vdc, 2 GPM to 460 GPM, +/- 2 % Accuracy, Amplified Square Pulse, PP, 150 psi

The Omega FP7001A

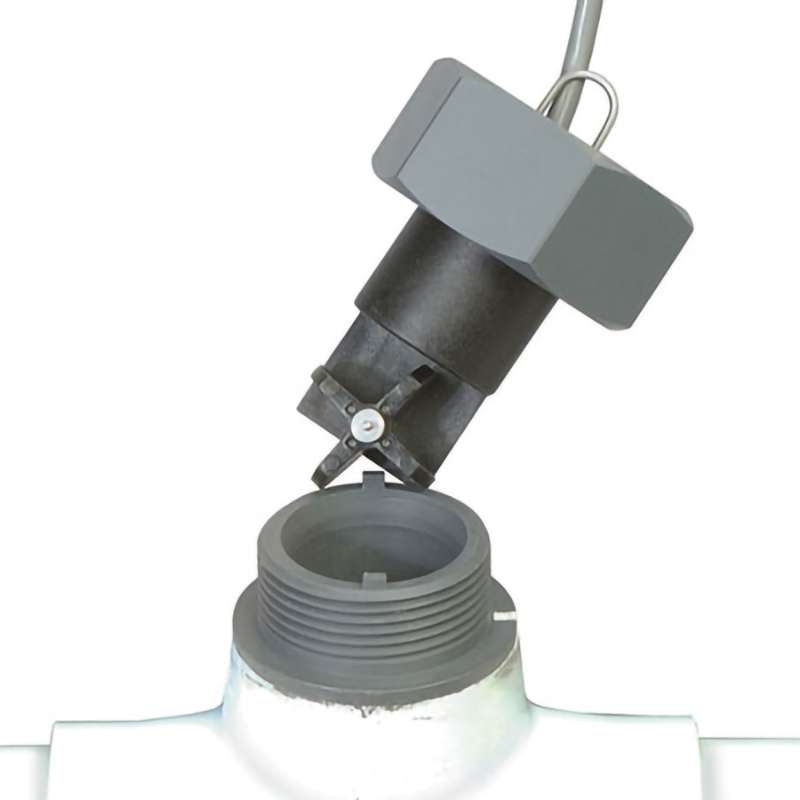

FP7001A paddlewheel flow and temperature sensor is ideal for accurate monitoring of typicalindustrial water flows, hard-to-handle corrosive aqueous solutions, and high purity fluids . The FP7001A utilizes a paddlewheel-like rotor whose motion is converted into a high-level square wave pulse output by an open collector Hall effect sensor. Pulse amplitudes from 5 to 18 V are possible, depending on input power. The FPW-15 120 Vac converter plugs directly into a wall socket and outputs a regulated 15 Vdc at 400 mA.

The DPF700 Series panel meter supplies power for the flow sensor and provides rate indication, ortotalization and batch control (when ordered with the dual relay option). When ordered with theanalog output option, the DPF700 can be used to interface the FP7001A flow signal to such items as stripchart recorders, dataloggers, and computer interfaces.

The system consists of the flow sensor, an installing fitting, and the electronics. The PVC tee fittings are supplied with a PVC locking nut, and the galvanized iron tee fittings are supplied with a brass lockingnut to provide secure metal-to-metal mounting to the threaded brass insert.
