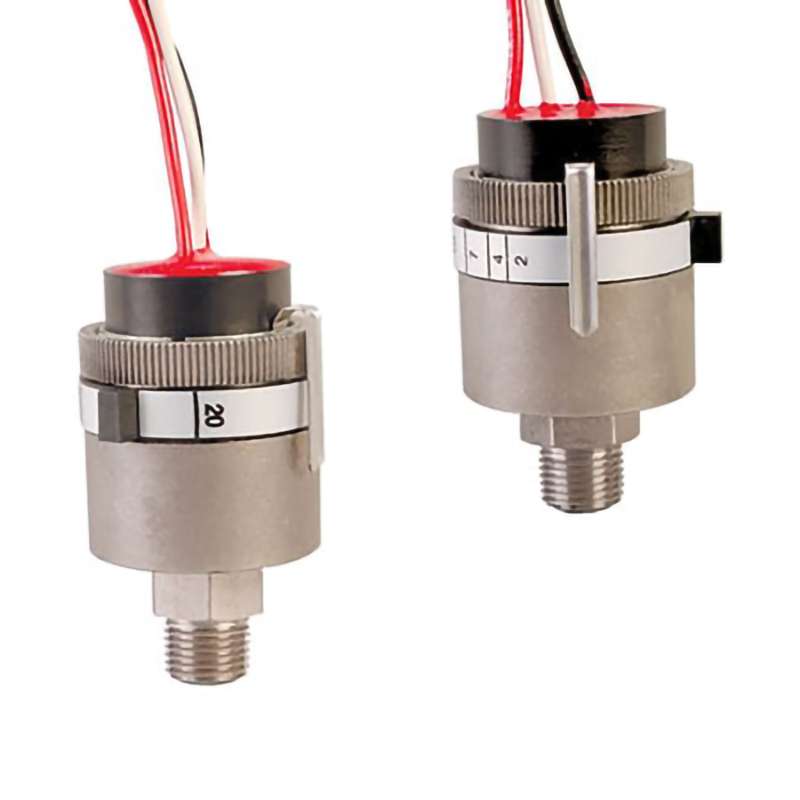

Miniature Pressure Switch with Relay/Alarm, OEM, Gauge Type, (1) 1 A SPST, 1/8" NPT Male, 3 psig to 100 psig, 1.5 psig to 3.5 psig Deadband, Fixed, Gold Plated Contact, PSW-500 Series
Hisco #:PSW-523-37300
MFG #:PSW-523
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 145.05 | |
| 3 | 141.52 | Save |
The Omega PSW-523
Capable of sensing very low positive or negative pressures, reliability and long life are inherent advantages of this design. Extremely easy set point adjustment: 1) Loosen the lock ring, 2) Turn interface either left or right until pointer is at the desire pressure or vacuum on range label, 3) Retighten the lock ring, and 4) Verify the adjustment by applying pressure or vacuum. See Switch Accessories at omega.com for Audible Alarms and Relay Modules.
Miniature Pressure Switch with Relay/Alarm, OEM, Gauge Type, (1) 1 A SPST, 1/8" NPT Male, 3 psig to 100 psig, 1.5 psig to 3.5 psig Deadband, Fixed, Gold Plated ContactProduct Description
The Omega PSW-523
Capable of sensing very low positive or negative pressures, reliability and long life are inherent advantages of this design. Extremely easy set point adjustment: 1) Loosen the lock ring, 2) Turn interface either left or right until pointer is at the desire pressure or vacuum on range label, 3) Retighten the lock ring, and 4) Verify the adjustment by applying pressure or vacuum. See Switch Accessories at omega.com for Audible Alarms and Relay Modules.
Miniature Pressure Switch with Relay/Alarm, OEM, Gauge Type, (1) 1 A SPST, 1/8" NPT Male, 3 psig to 100 psig, 1.5 psig to 3.5 psig Deadband, Fixed, Gold Plated ContactTechnical Information
