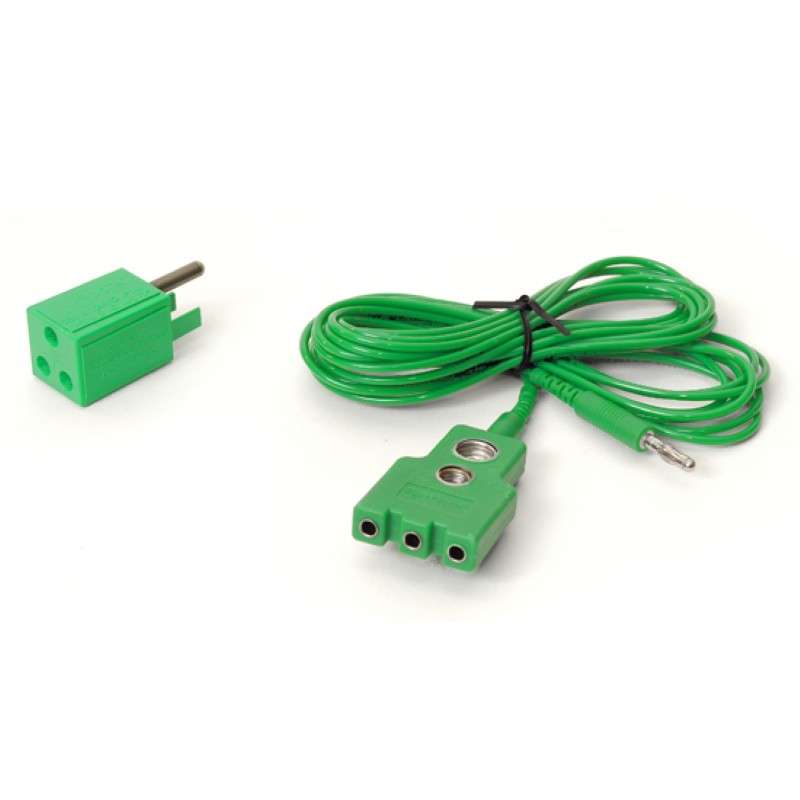

ESD-Safe Triple Common Point Ground Cord 15ft, with Qube, ESD-Safe
Hisco #:PGC-017Q-40460
MFG #:PGC-017Q
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 39.95 | |
| 3 | 38.98 | Save |
The Prostat PGC-017Q replaces ordinary electrical grounding devices with a cost-effective solution for connecting multiple ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist straps, testers, instruments, and other ESD control products to a pre-tested facility electrical ground. The device features a robust multi-receptacle frame encased in fire-retardant ABS with a solid brass grounding pin.
The Prostat PGC-017Q PGC-017 triple common point ground is designed to ground worksurfaces by snapping onto the mat’s stud. It includes a 10mm snap socket, a 7mm snap socket, and three (3) standard banana jacks, allowing up to three operators to connect their wrist straps to ground.
The included 15-foot ground cord is terminated with a standard male banana plug cord connection to ground, including the Q007B ESD Cube. The PGC-017 incorporates a one-megohm resistor in series with the snap, in accordance with IEC 61340-5-1, ANSI/ESD S20.20, and ANSI/ESD S6.1 standards.
Prostat PGC-017Q Features:- Includes the Triple Socket Grounding Connector
- Includes a 15-foot long Ground Cord with 3 banana jacks
- Recommended for use on tested electrical outlets
- Replaces expensive grounding blocks and circuit indicators
- Convenient connection for ESD grounding
- Complies with IEC 61340-5-1
- Complies with ANSI/ESD S20.20
- Complies with ANSI/ESD S6.1
Product Description
The Prostat PGC-017Q replaces ordinary electrical grounding devices with a cost-effective solution for connecting multiple ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist straps, testers, instruments, and other ESD control products to a pre-tested facility electrical ground. The device features a robust multi-receptacle frame encased in fire-retardant ABS with a solid brass grounding pin.
The Prostat PGC-017Q PGC-017 triple common point ground is designed to ground worksurfaces by snapping onto the mat’s stud. It includes a 10mm snap socket, a 7mm snap socket, and three (3) standard banana jacks, allowing up to three operators to connect their wrist straps to ground.
The included 15-foot ground cord is terminated with a standard male banana plug cord connection to ground, including the Q007B ESD Cube. The PGC-017 incorporates a one-megohm resistor in series with the snap, in accordance with IEC 61340-5-1, ANSI/ESD S20.20, and ANSI/ESD S6.1 standards.
Prostat PGC-017Q Features:- Includes the Triple Socket Grounding Connector
- Includes a 15-foot long Ground Cord with 3 banana jacks
- Recommended for use on tested electrical outlets
- Replaces expensive grounding blocks and circuit indicators
- Convenient connection for ESD grounding
- Complies with IEC 61340-5-1
- Complies with ANSI/ESD S20.20
- Complies with ANSI/ESD S6.1
