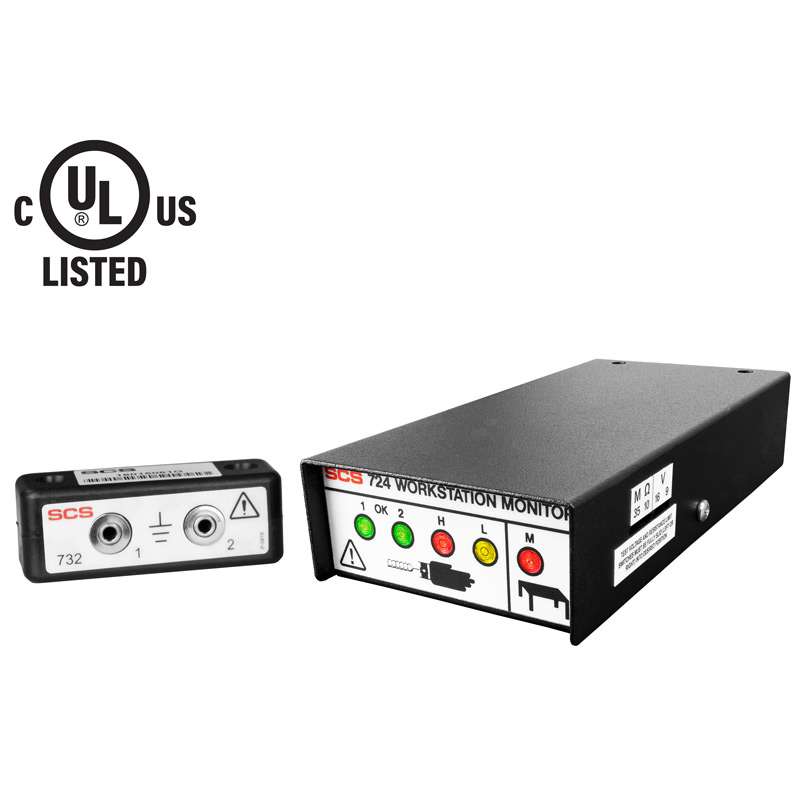

Continuous Wrist Strap Workstation Monitor for SCS Dual Conductor Wrist Straps, No Power Adapter
Hisco #:724MO-15078
MFG #:724MO
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 241.67 | |
| 3 | 232.54 | Save |
The SCS 724MO is a dual conductor wrist strap monitor that works with either one or two workstations. This monitor provides instant notification when a wrist strap malfunctions or when it is being worn improperly. The SCS 724MO continuously pulses a signal which is returned to the monitor through a special wrist strap and cord that contains two separate sets of independent conductors. Designed to monitor the operation of the wrist strap grounding systems of two operators by using a DC current source to measure a loop electrical resistance. The SCS 724MO monitor takes a resistance measurement by passing a very small pulsed signal down one conductor in the cord into one side of the wrist band, from the band through the skin of the wearer, back into the second side of the wrist band, and back down the second conductor in the cord to the monitor. Switches located on the side of the monitor allows for selection of test voltages (9v or 16v) and resistance limits (10 or 35 megohms).
SCS 724MO Includes:- (1) 724 Monitor
- (1) 732 Remote dual conductor jack with connection cable
- (1) Mounting hardware package with: (4) misc. wood screws, (2) zip ties, and (2) adhesive pads
- (1) 724PINCON Two-wire connector
- (2) Grounding cords: (1) 2380D Black with low profile table connection and (1) green with yellow stripe for earth ground
- (1) Manufacturer's Certificate of Conformance traceable to NIST
- Monitors primary worker, wrist strap, work surface ground connection
- Monitors visitor to work station
- Audible and visible alarms
- Adjustable volume on audible alarms
- Optional audible alarm for mat
- Includes operators resistance in test circuits
- Passive system activation
- Test voltage & resistance limit switches
- Redundant conductors offer superior protection
- Eliminates audits and recordkeeping
- Compact: 6-1/2" x 3-1/4" x 1-3/8"
- Monitors resistor by-pass
- Optional Splitter Kit 733 allows for grounding/monitoring two individuals at two separate work stations
Product Description
The SCS 724MO is a dual conductor wrist strap monitor that works with either one or two workstations. This monitor provides instant notification when a wrist strap malfunctions or when it is being worn improperly. The SCS 724MO continuously pulses a signal which is returned to the monitor through a special wrist strap and cord that contains two separate sets of independent conductors. Designed to monitor the operation of the wrist strap grounding systems of two operators by using a DC current source to measure a loop electrical resistance. The SCS 724MO monitor takes a resistance measurement by passing a very small pulsed signal down one conductor in the cord into one side of the wrist band, from the band through the skin of the wearer, back into the second side of the wrist band, and back down the second conductor in the cord to the monitor. Switches located on the side of the monitor allows for selection of test voltages (9v or 16v) and resistance limits (10 or 35 megohms).
SCS 724MO Includes:- (1) 724 Monitor
- (1) 732 Remote dual conductor jack with connection cable
- (1) Mounting hardware package with: (4) misc. wood screws, (2) zip ties, and (2) adhesive pads
- (1) 724PINCON Two-wire connector
- (2) Grounding cords: (1) 2380D Black with low profile table connection and (1) green with yellow stripe for earth ground
- (1) Manufacturer's Certificate of Conformance traceable to NIST
- Monitors primary worker, wrist strap, work surface ground connection
- Monitors visitor to work station
- Audible and visible alarms
- Adjustable volume on audible alarms
- Optional audible alarm for mat
- Includes operators resistance in test circuits
- Passive system activation
- Test voltage & resistance limit switches
- Redundant conductors offer superior protection
- Eliminates audits and recordkeeping
- Compact: 6-1/2" x 3-1/4" x 1-3/8"
- Monitors resistor by-pass
- Optional Splitter Kit 733 allows for grounding/monitoring two individuals at two separate work stations
