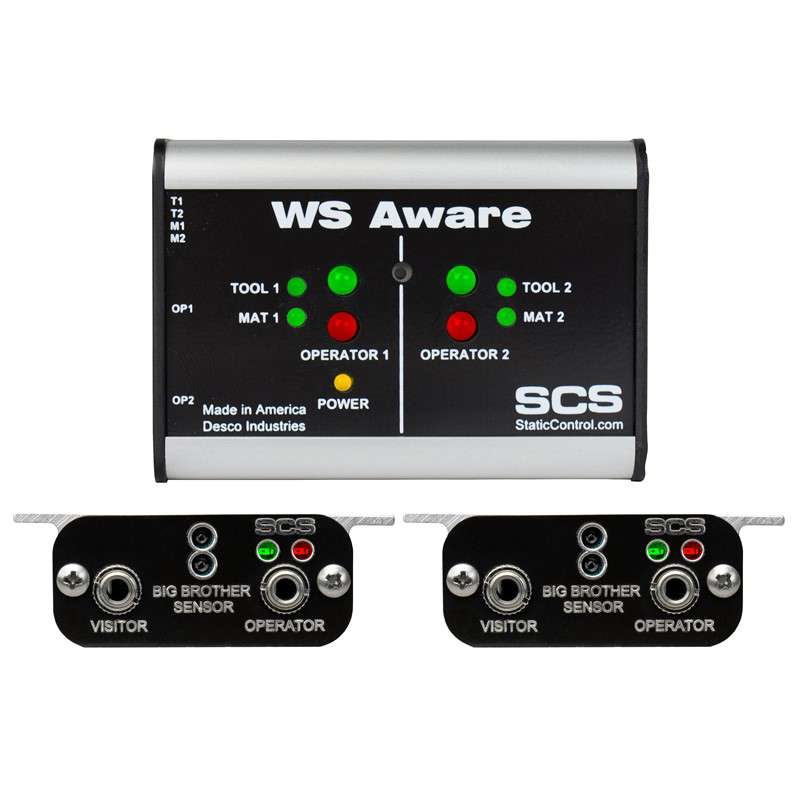

WS Aware Dual-Wire Monitor with Big Brother Remotes, Ethernet Output

The SCS 770068 is designed with digital signal processing technology for true continuous monitoring (versus pulsed or intermittent) of wrist strap functionality (path-to-ground and presence of 1 megohm resistor) and operator safety according to accepted industry standards without capacitance variations from personnel or environment.

• Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01.
• Digital Signal Processing Technology applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components.
• Remote terminals with Big Brother Sensor detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items
• Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
• 100-240VAC Power Adapter with Interchangeable Plugs works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe.

• Brand: SCS
• Product Type: Workstation Monitors
• NIST Calibrated
• Wrist Strap: Dual-Wire
• Test Voltage: 380 mV (open-circuit)
• Replaceable Dual-Wire Operator Jack
• Programmable EMI Range: 1 to 1,000 mV
• Made in America
