Ion Pro Benchtop Ionizer Installation, Operation and Maintenance, 220 VAC, without Power Cord

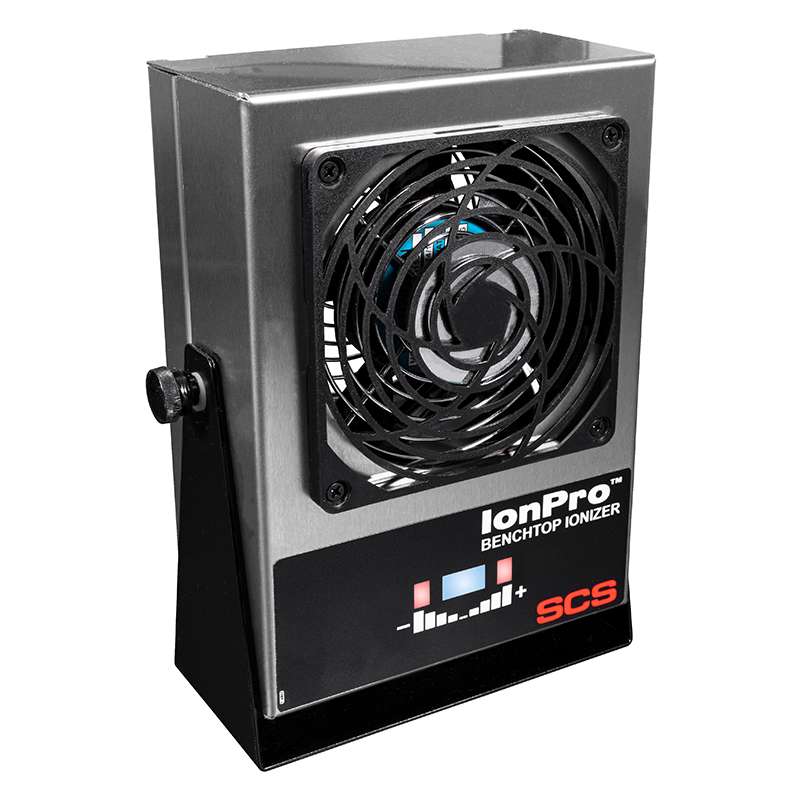

SCS 770117 is a benchtop ionizer. The Ion Pro Benchtop Ionizer is a steady-state DC benchtop ionizer with Ion Gauge™ Technology, which yields optimal neutralization efficiency by utilizing an ion collecting plate to sample both balance and discharge time. It has dual-balance sensors that apply a resistive sensor to control the balance and a patented capacitive sensor to provide long-term stabilization. This ionizer utilizes solid tungsten emitters which resist oxidation and melting to maintain sharp points for optimal ionizer performance.

SCS 770117 Features:

• Yields optimal neutralization efficience for both balance and discharge time
• Meets the ANSI/ESD S20.20 required limits for ionization
• Alerts users with alarms if the ionizer requires maintenance due to inefficient neutralization
• Performs consistently at all speeds without ion recombination via a two-speed fan
• Utilizes ethernet connectivity to provide network communication for collecting and reporting status
• Minimizes foreign object debris, corrosion, and conatminations with a stainless steel housing and multi-mount stand

SCS 770117 Specifications:

• Brand: SCS
• Gross Weight: 6.15 lb.
• Dimensions (with stand): 9.1” H x 6.3” W x 3.1” D
• Input Voltage and Frequency: 220-240 VAC, 50/60 Hz
• Neutralization (Discharge) Time at 12”: < 1.5 seconds
• Offset Voltage (Balance) at 12”: +/- 3 V typical
• Ion Emission: Steady-state DC
• Airflow: Dual speed, 77 CFM max
• Ozone: <0.05 ppm
• Discharge Time Alarm Threshold at 12”: 4.5 s
• Offset Voltage Alarm Threshold (Standard Mode): +/- 35 V approx.
• Offset Voltage Alarm Threshold (CE Mode): +/- 7 V approx.
• Power Consumption: 10 W
• Emitter Points: Tungsten
• U.S. Patents: 9,404,945; 9,588,161
