KIT RESISTANCE TEST OHM METRICS SURFACE
Hisco #:SRM330-52162
MFG #:SRM330
Our Price: $1,358.18 EA
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 10 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 1358.18 | |
| 3 | 1292.03 | Save |

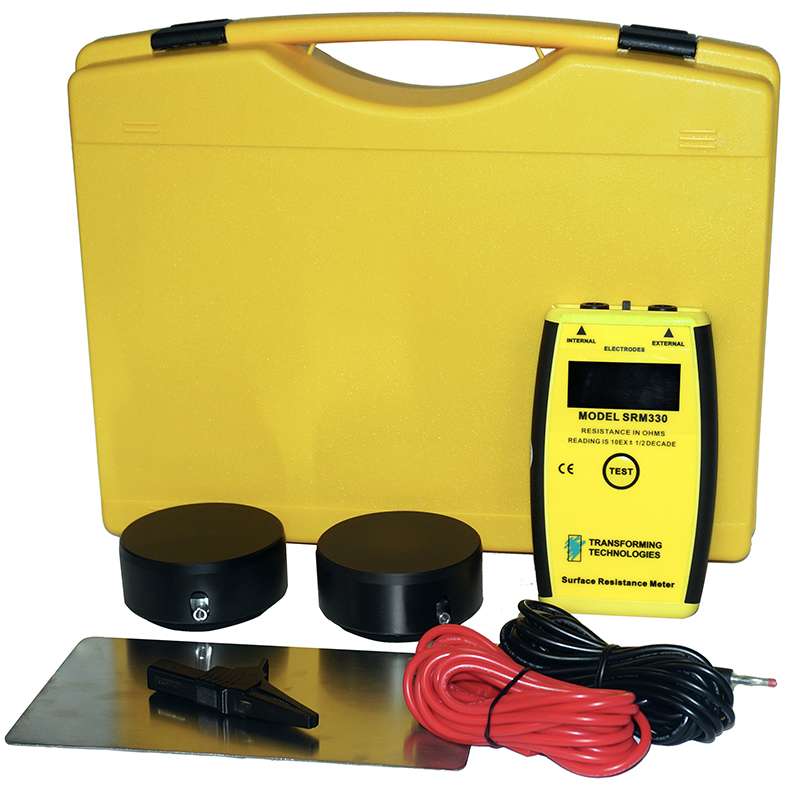

The Transforming Technologies SRM330 is a digital surface resistivity test kit.
Transforming Technologies SRM330 Features:
Transforming Technologies SRM330 Features:
- Digital surface resistance test kit that accurately measures RPP and RTG
- The ultimate travel kit for testing materials for electrical resistances for many standard test prodecures
- Meets requirements of ANSI/ESD S4.1, S7.1, S2.1 and STM12.1 and STM97.1
- Resistivity: 10^3-10^12 ohms/sq.
- Resistance: 10^3-10^12 ohms
- Read Out: Color coded LCD
- Probes: two travel Probes, two 3" parallel surface resistivity probes
- Power Supply: 9V Battery (PP3)
- Accuracy: ±1/2 decade
- Test Voltage: 10V/100V (Automatic Ranging)
- Test Range: 10^3 - 10^12
- Dimensions: 5.8 x 3.5 x 0.98"
- Wieght: 7oz
Product Description
Technical Information
Back to top
Product Description
The Transforming Technologies SRM330 is a digital surface resistivity test kit.
Transforming Technologies SRM330 Features:
Transforming Technologies SRM330 Features:
- Digital surface resistance test kit that accurately measures RPP and RTG
- The ultimate travel kit for testing materials for electrical resistances for many standard test prodecures
- Meets requirements of ANSI/ESD S4.1, S7.1, S2.1 and STM12.1 and STM97.1
- Resistivity: 10^3-10^12 ohms/sq.
- Resistance: 10^3-10^12 ohms
- Read Out: Color coded LCD
- Probes: two travel Probes, two 3" parallel surface resistivity probes
- Power Supply: 9V Battery (PP3)
- Accuracy: ±1/2 decade
- Test Voltage: 10V/100V (Automatic Ranging)
- Test Range: 10^3 - 10^12
- Dimensions: 5.8 x 3.5 x 0.98"
- Wieght: 7oz
Technical Information
Brand: Transforming Technologies
Weight: 0.437
Country Of Origin: CN
Harmonized Code: 9030.33.3800
UPC Code: 665355882802
