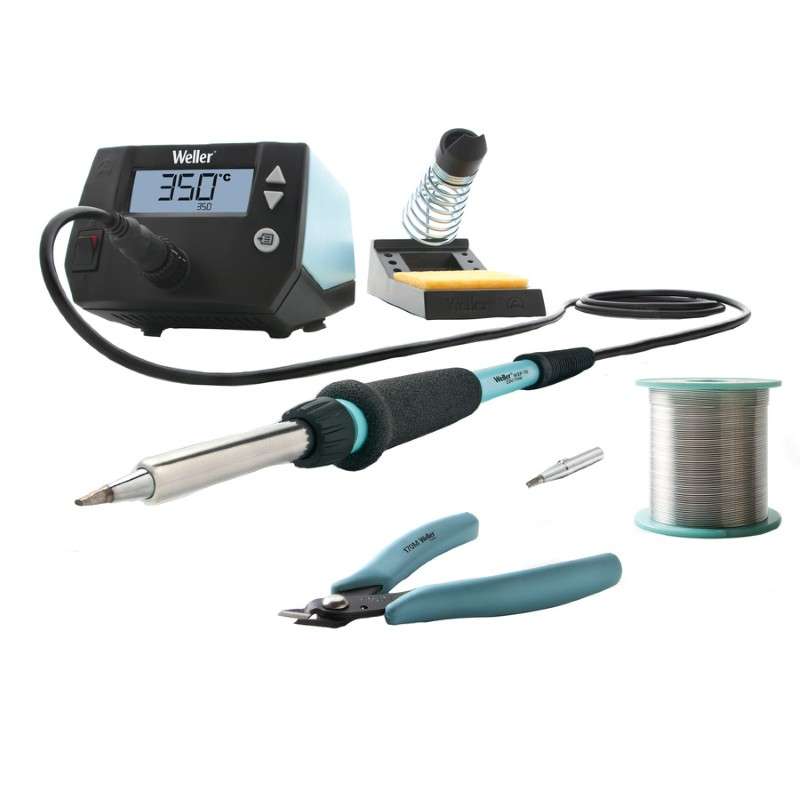

Soldering Station Education Kit, 70W, w/WE1010, WEP70, PH70, 170MN, Wire, WE Series

Hisco #:WE1010EDU-12200

MFG #:WE1010EDU

Our Price: $268.75 PC
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
QuantityPriceSave
1268.75
3255.66Save

The Weller WE1010EDU iron heats up fast, ability to reach 660 °F in 28 seconds, to provide a fast recovery time – gets the job done quicker with more efficiency and precision. When not in use the iron Sets temperature back automatically to save energy and increase tip life­time. The station is designed in a state-of-the-art housing with front panel power switch for easy access and is ESD safe. Station automatically powers down to a given temperature when not in use. All settings can be secured with a password, so that predefined settings can be maintained in order to ensure process quality. The kit also comes with a new high performance 70 W soldering iron with an ergonomic handle and easy toolless tip change solution
Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.
Includes: Power unit, 1 channel 70 W with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1.6 mm; ETB 2.4 mm

Weller WE1010EDU Features:
  • Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1.6 mm; ETB 2.4 mm
  • 70W solder iron with ergonomic handle and providing tool-less tip change
  • ESD safe station, iron and heat-resistant silicon cable for safe handling
  • Standby mode and auto setback conserves energy, protects equipment
  • Password-protected to preserve settings
  • 170MN general purpose shearcutter, diagonal, flush. Greatly reduced mechanical shock delivered to the component, ESD safe
  • WSW solder wire; all purpose solder wire with excellent wetting properties

Product Description

The Weller WE1010EDU iron heats up fast, ability to reach 660 °F in 28 seconds, to provide a fast recovery time – gets the job done quicker with more efficiency and precision. When not in use the iron Sets temperature back automatically to save energy and increase tip life­time. The station is designed in a state-of-the-art housing with front panel power switch for easy access and is ESD safe. Station automatically powers down to a given temperature when not in use. All settings can be secured with a password, so that predefined settings can be maintained in order to ensure process quality. The kit also comes with a new high performance 70 W soldering iron with an ergonomic handle and easy toolless tip change solution
Replacement for 4ETH, 4ETK, 4ETO, 4ETS necessary. For WEP 70 4ETHL, 4ETKL, 4EKOL and 4ETSL must be used.
Includes: Power unit, 1 channel 70 W with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1.6 mm; ETB 2.4 mm

Weller WE1010EDU Features:
  • Power unit, 1 channel with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1.6 mm; ETB 2.4 mm
  • 70W solder iron with ergonomic handle and providing tool-less tip change
  • ESD safe station, iron and heat-resistant silicon cable for safe handling
  • Standby mode and auto setback conserves energy, protects equipment
  • Password-protected to preserve settings
  • 170MN general purpose shearcutter, diagonal, flush. Greatly reduced mechanical shock delivered to the component, ESD safe
  • WSW solder wire; all purpose solder wire with excellent wetting properties

Technical Information

BrandWeller
Weight: 6.77
Country Of Origin: MX
Harmonized Code: 7315.82.5000
UPC Code: 037103328748
