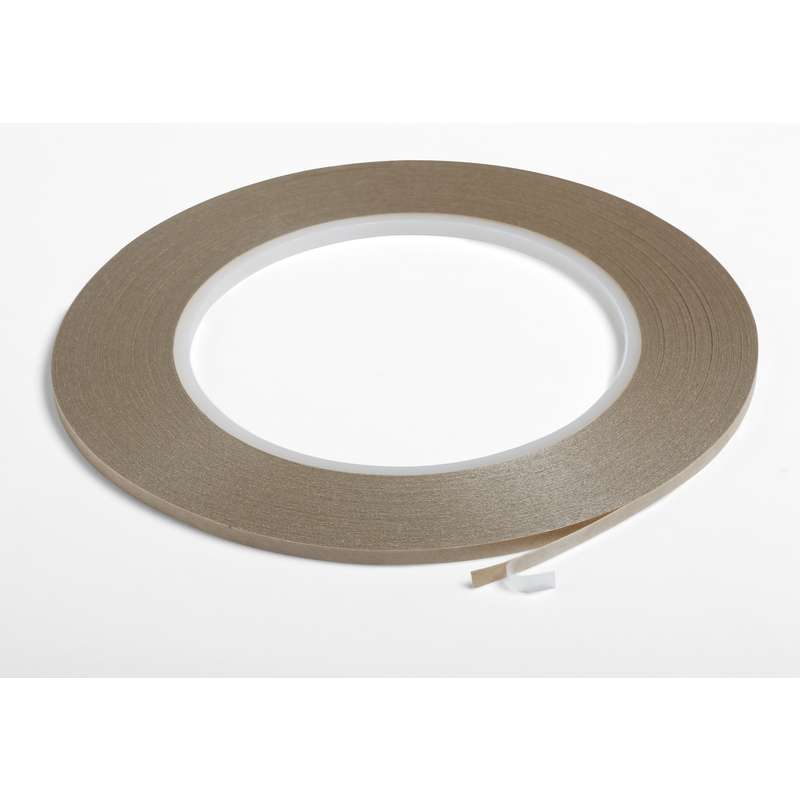

3M™ Anisotropic Conductive Film Adhesive 7303, 3 mm x 35 m Roll, 50 rolls/Case
Hisco #:00051115524363-31196
MFG #:7010373975
Item must be ordered in multiples of 32
| Quantity | Price | Save |
|---|---|---|
| 50 | 342.59 | Save |
| 150 | 335.56 | Save |
3M™ ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.
The unbonded film is slightly tacky at room temperature and consists of a thermosetting epoxy/acrylate adhesive matrix randomly loaded with conductive particles. These particles allow interconnection of circuit lines through the adhesive thickness, but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. Hard conductive particles are preferred for copper traces, as they embed into traces for good electrical performance. 3M™ ACF 7303 may be used to bond a flexible printed circuit to another flexible printed circuit or to a printed circuit board. Standard Lead Time: 14 Calendar Days
3M 7010373975 Features:- Heat cure
- Thermo-set low temperature cure
- Tacky at room temperature
- Good thermal stability
- Reworkable
- Frozen storage
- Package Quantity: 32 LOOS
- Part Number: 7303
Product Description
3M™ ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.
The unbonded film is slightly tacky at room temperature and consists of a thermosetting epoxy/acrylate adhesive matrix randomly loaded with conductive particles. These particles allow interconnection of circuit lines through the adhesive thickness, but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. Hard conductive particles are preferred for copper traces, as they embed into traces for good electrical performance. 3M™ ACF 7303 may be used to bond a flexible printed circuit to another flexible printed circuit or to a printed circuit board. Standard Lead Time: 14 Calendar Days
3M 7010373975 Features:- Heat cure
- Thermo-set low temperature cure
- Tacky at room temperature
- Good thermal stability
- Reworkable
- Frozen storage
- Package Quantity: 32 LOOS
- Part Number: 7303
Technical Information
Item must be ordered in multiples of 32
