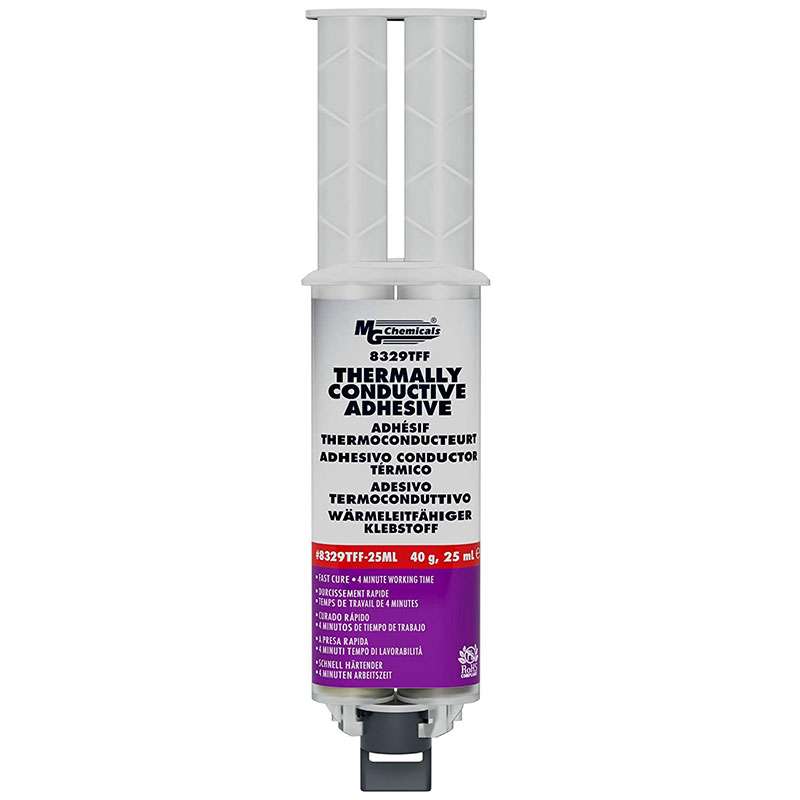

Thermally Conductive Flowable Adhesive, Fast Cure. 25mL Dual Syringe

The MG Chemicals 8329TFF-25ML is a thermally conductive, fast-cure two-part epoxy adhesive. It is off-white, smooth, thixotropic, and bonds well to a wide variety of substances. It is also flame retardant, and meets the UL 94V-0 standard. For a 1 mL quantity, a minimal service cure can be achieved in 15 minutes at room temperature, and a full cure in 4 hours.This product is used to bond heat sinks, LEDs and other heat-generating components in electronic assemblies. It is suitable for use with dual-syringes, mix-tips and automatic dispensing systems.For a longer working life, use 8329TFM or 8329TFS.

• Thermal conductivity of 0.8 W/(m·K)
• 1:1 mix ratio
• Working life: 4 minutes
• Set time: 15 minutes
• Cure time: 4 hours at room temperature or 15 minutes at 65 °C (149 °F)
• Flame retardant—meets UL 94V-0 standard
• Provides strong electrical insulation
• Low CTE prior Tg
• High tensile and compressive strength
• Strong resistance to humidity, salt water, mild bases, and aliphatic hydrocarbons
• Shelf life: ≥3 years
• RoHS 3 compliant
• Container size: 25mL Dual Syringe

• Working life @22 °C [72 °F]: 4 min
• Shelf life @22 °C [72 °F] a) : ≥3 y
• Set time @22 °C [72 °F]: 15 min
• Full cure @22 °C [72 °F]: 4 h
• Full cure @65 °C [149 °F]: 15 min
• Full cure @80 °C [176 °F] :10 min
• Constant service temperature: -40 to 150 °C [-40 to 302 °F]
• Maximum intermittent temperature: 175 °C [347 °F]
• Storage temperature: 22 to 27 °C [72 to 81 °F]
