Belden
3499 EPMD 2AWG Black Tinned Copper 7500V 50ft
Hisco #:3750250-10-12201
MFG #:3750250-10
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 28 days
Minimum Order QTY: 50
Item must be ordered in multiples of 50
Item must be ordered in multiples of 50

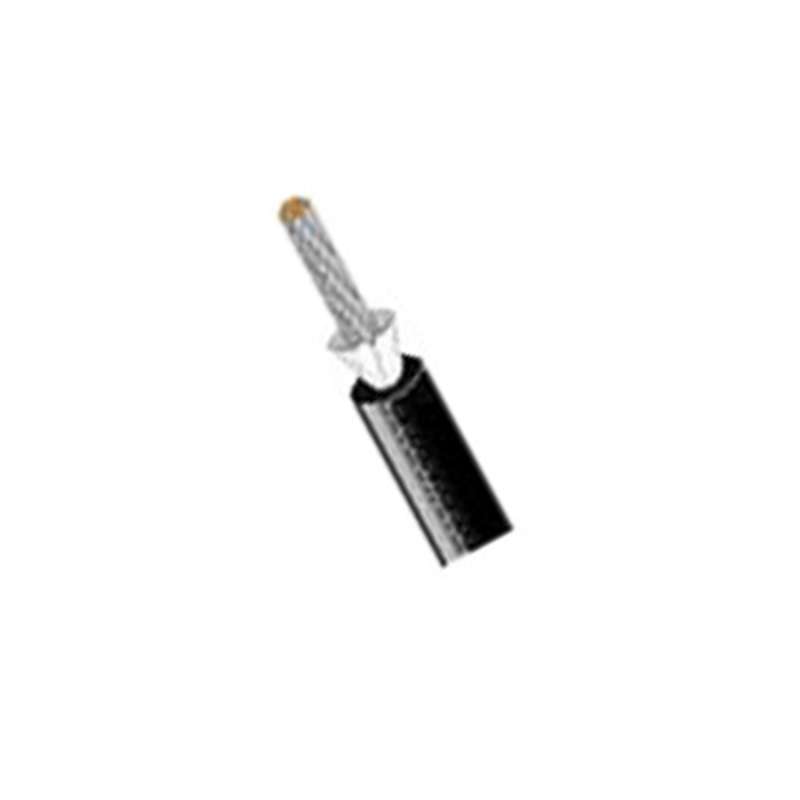

The Belden 3750250-10 is a Series 375 epdm wire .
The Belden 3750250-10 Features:- Series: 375
- Length: 50ft
- Number of Cores: 1
- Outer Diameter: 0.581in
- Current Rating: 255A
- Screened or Unscreened: Unscreened
- Sheath Material: EPDM
- Voltage Rating: 7500Vrms
- Core Strands: 163/24
- Conductor Resistance: 0.52Ω/km
- Conductor Material: Tinned Copper
- Insulation Material: EPDM
- Material Category: Rubber
- American Wire Gauge: 2AWG
- Insulation Thickness: 0.125in
- Sheath Color: Black
- Primary Color: Black
- Cable Shape: Single Core
- Standards Met: UL AWM Style 3499, RoHS Compliant
- Minimum Operating Temperature: -55°C
- Number of Strands: 163
- Size of Strands: 24AWG
- Maximum Operating Temperature: +150°C
Product Description
Technical Information
Back to top
Product Description
The Belden 3750250-10 is a Series 375 epdm wire .
The Belden 3750250-10 Features:- Series: 375
- Length: 50ft
- Number of Cores: 1
- Outer Diameter: 0.581in
- Current Rating: 255A
- Screened or Unscreened: Unscreened
- Sheath Material: EPDM
- Voltage Rating: 7500Vrms
- Core Strands: 163/24
- Conductor Resistance: 0.52Ω/km
- Conductor Material: Tinned Copper
- Insulation Material: EPDM
- Material Category: Rubber
- American Wire Gauge: 2AWG
- Insulation Thickness: 0.125in
- Sheath Color: Black
- Primary Color: Black
- Cable Shape: Single Core
- Standards Met: UL AWM Style 3499, RoHS Compliant
- Minimum Operating Temperature: -55°C
- Number of Strands: 163
- Size of Strands: 24AWG
- Maximum Operating Temperature: +150°C
Technical Information
Brand: Belden
Weight: 0.387
