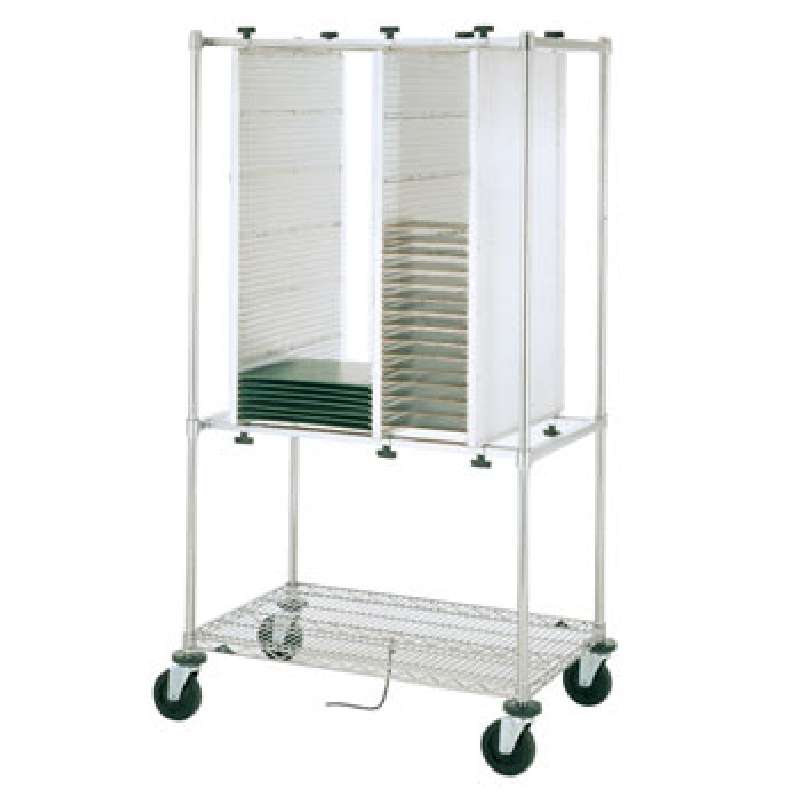

Printed Circuit Board Truck, Horizontal Hold, 24" x 36" x 68
Hisco #:CBL536BC-37280
MFG #:CBL536BC
Our Price: $2,842.00 EA
List Price: Ships direct from manufacturer
Manufacturer Estimated Lead Time When Not In Stock: 84 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 2842.00 | |
| 3 | 2645.02 | Save |
The Metro CBL536BC is a hand truck used to safely transport and store printed circuit boards. Trucks provide 48 levels for circuit boards and offer 11/16" spacing for high density loading. Middle panel has extrusions on both sides. Slides accept boards up to 22 1/2" long and up to 1/2" thick.
The Metro CBL536BC Features:- Center panel features slides on both sides
- All metal truck components eliminate electrostatic build-up in properly grounded units.
- Panels slide along side frames to the exact width of boards. Holding knobs at each panel corner are manually tightened to hold panels securely in place.
- Dimensions: 24 X 36 x 68in
- Casters: Yes
- Maximum Board Size: 22-1/2 x 42-1/4in
- Capacity, Full Size Boards: 48
- Capacity 11" Boards Without Center Panel: 96
- Capacity 11" Boards With 2 Center Panels: 192
- Load Rating: 5lbs per slide, 75 lbs per bay, 50 lbs maximum per unit
Product Description
Technical Information
Parts & Accessories
Back to top
Product Description
The Metro CBL536BC is a hand truck used to safely transport and store printed circuit boards. Trucks provide 48 levels for circuit boards and offer 11/16" spacing for high density loading. Middle panel has extrusions on both sides. Slides accept boards up to 22 1/2" long and up to 1/2" thick.
The Metro CBL536BC Features:- Center panel features slides on both sides
- All metal truck components eliminate electrostatic build-up in properly grounded units.
- Panels slide along side frames to the exact width of boards. Holding knobs at each panel corner are manually tightened to hold panels securely in place.
- Dimensions: 24 X 36 x 68in
- Casters: Yes
- Maximum Board Size: 22-1/2 x 42-1/4in
- Capacity, Full Size Boards: 48
- Capacity 11" Boards Without Center Panel: 96
- Capacity 11" Boards With 2 Center Panels: 192
- Load Rating: 5lbs per slide, 75 lbs per bay, 50 lbs maximum per unit
Technical Information
Brand: Metro
Weight: 105
Country Of Origin: MX
Harmonized Code: 7326.20.0090
