Hand Pump
Hisco #:7475H-65663
MFG #:7475H
Our Price: $684.90 EA
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 684.90 | |
| 3 | 661.67 | Save |

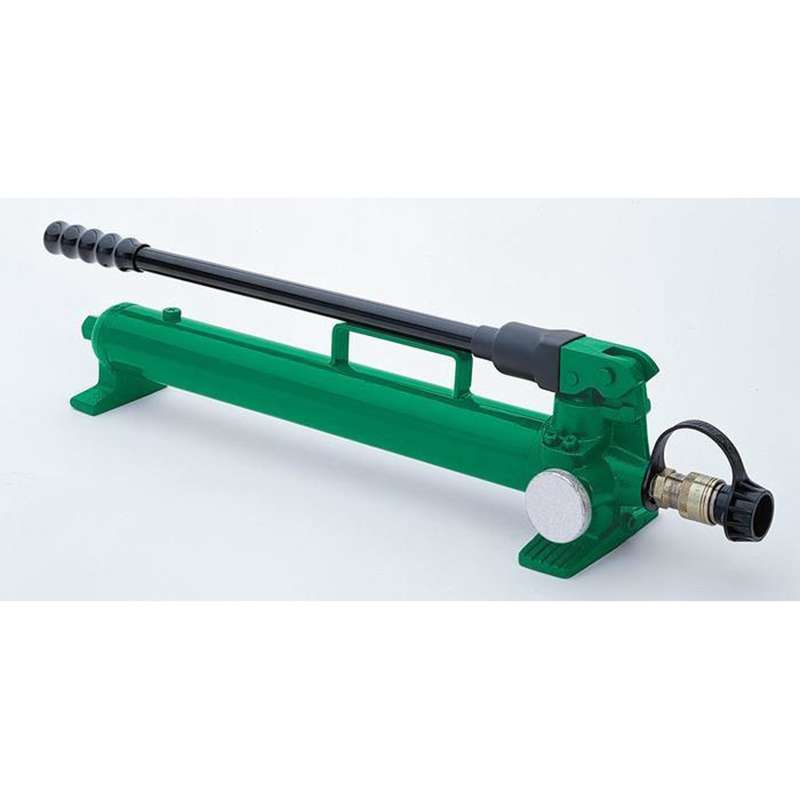

The Greenlee 7475H is a Hydraulic Pump
Greenlee 7475H Features:- Two-speed hydraulic pump, Ideal for use with remote cutting and crimping tools
- Compact and lightweight - easy to move around jobsites
- Solid base with wide legs provides for good stability during operation
- Built-in carrying handle
- Large, easy-to-grasp, retraction wheel
- Equipped with 3/8" female screw-type hydraulic coupler
- 0.82 cu in/stroke 1st stage oil volume (200 psi)
- Application : For Use With Remote Cutting And Crimping Tools
- Coupler Size : 3/8 IN
- Height : 5-1/2 IN (140.000 MM)
- Length : 25.000 IN (635.000 MM) (Including Coupler)
- Number Of Stages : 2
- Oil Volume Utilization : 0.82 CU-IN/Stroke For 1st Stage Oil Volume (200 PSI), 0.16 CU-IN/Stroke For 2nd Stage Oil Volume (10,000 PSI)
- Pressure Rating : 10000 PSI (700 Bar)
- Replacement Part : 07829 Seal Kit
- Type : Hand-Operated
- Useable Oil Capacity : 0.750 Quart (0.740 LTR)
- Weight : 18.000 LB (8.200 KG)
- Width : 5-5/8 IN (143.000 MM)
Product Description
Technical Information
Back to top
Product Description
The Greenlee 7475H is a Hydraulic Pump
Greenlee 7475H Features:- Two-speed hydraulic pump, Ideal for use with remote cutting and crimping tools
- Compact and lightweight - easy to move around jobsites
- Solid base with wide legs provides for good stability during operation
- Built-in carrying handle
- Large, easy-to-grasp, retraction wheel
- Equipped with 3/8" female screw-type hydraulic coupler
- 0.82 cu in/stroke 1st stage oil volume (200 psi)
- Application : For Use With Remote Cutting And Crimping Tools
- Coupler Size : 3/8 IN
- Height : 5-1/2 IN (140.000 MM)
- Length : 25.000 IN (635.000 MM) (Including Coupler)
- Number Of Stages : 2
- Oil Volume Utilization : 0.82 CU-IN/Stroke For 1st Stage Oil Volume (200 PSI), 0.16 CU-IN/Stroke For 2nd Stage Oil Volume (10,000 PSI)
- Pressure Rating : 10000 PSI (700 Bar)
- Replacement Part : 07829 Seal Kit
- Type : Hand-Operated
- Useable Oil Capacity : 0.750 Quart (0.740 LTR)
- Weight : 18.000 LB (8.200 KG)
- Width : 5-5/8 IN (143.000 MM)
Technical Information
Brand: Greenlee
Weight: 19.85
Country Of Origin: US
Harmonized Code: 8413.20.0000
UPC Code: 783310074755
