Conductive Plate and Charger for Portable Air Ionizer Test Kit
Hisco #:770719-15078
MFG #:770719
Our Price: $716.06 EA
List Price: Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 716.06 | |
| 3 | 689.00 | Save |

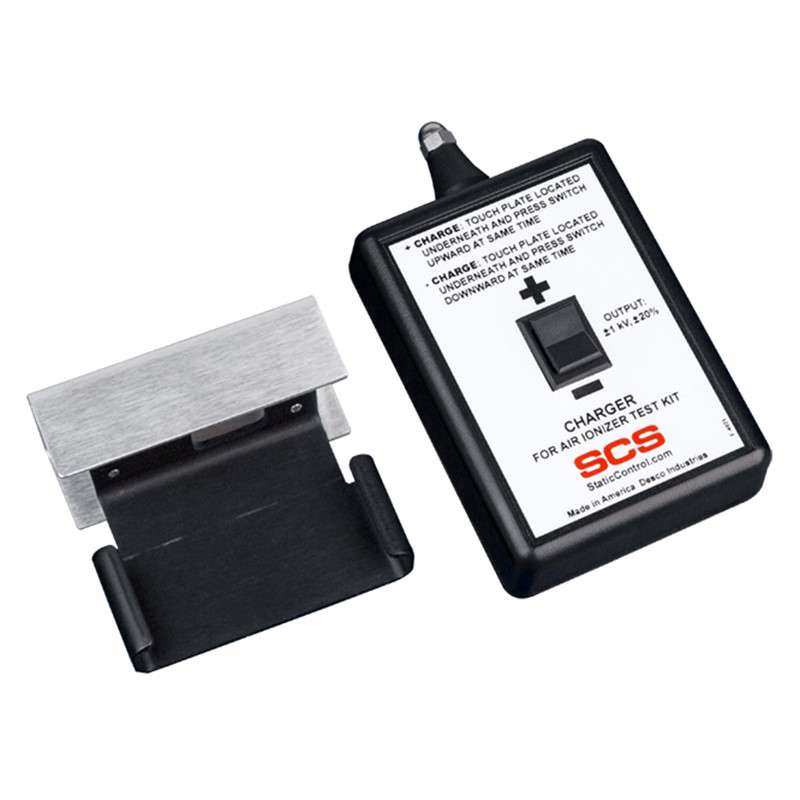

The SCS 770719 is a conductive plate and charger designed to work with the portable Air Ionizer Test Kit. The conductive plate pairs with the 718 Static Sensor to aid in the measurement of offset voltage and the discharge times for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53.
SCS 770719 Features and Components:- Stainless Steel Conductive Plate
- ±1000V Charger
- 9V Alkaline Batteries
- Carrying Case, provides a polypropylene enclosere and polyurethane foam to better safeguard kit components
- Conductive Plate Assembly: Aluminum bracket, bare aluminum plate and teflon spacers isolate plate from bracket
- Conductive plate Area: 2.95" W x 1.18" L
- Charger Power Requirements: One 9-volt alkaline battery
- Charger Output (using Static Sensor with conductive plate): 1.1 kV minimum for ± voltage
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The SCS 770719 is a conductive plate and charger designed to work with the portable Air Ionizer Test Kit. The conductive plate pairs with the 718 Static Sensor to aid in the measurement of offset voltage and the discharge times for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53.
SCS 770719 Features and Components:- Stainless Steel Conductive Plate
- ±1000V Charger
- 9V Alkaline Batteries
- Carrying Case, provides a polypropylene enclosere and polyurethane foam to better safeguard kit components
- Conductive Plate Assembly: Aluminum bracket, bare aluminum plate and teflon spacers isolate plate from bracket
- Conductive plate Area: 2.95" W x 1.18" L
- Charger Power Requirements: One 9-volt alkaline battery
- Charger Output (using Static Sensor with conductive plate): 1.1 kV minimum for ± voltage
Technical Information
Brand: SCS
Weight: 1.7
Country Of Origin: US
Harmonized Code: 9030.33.0040
