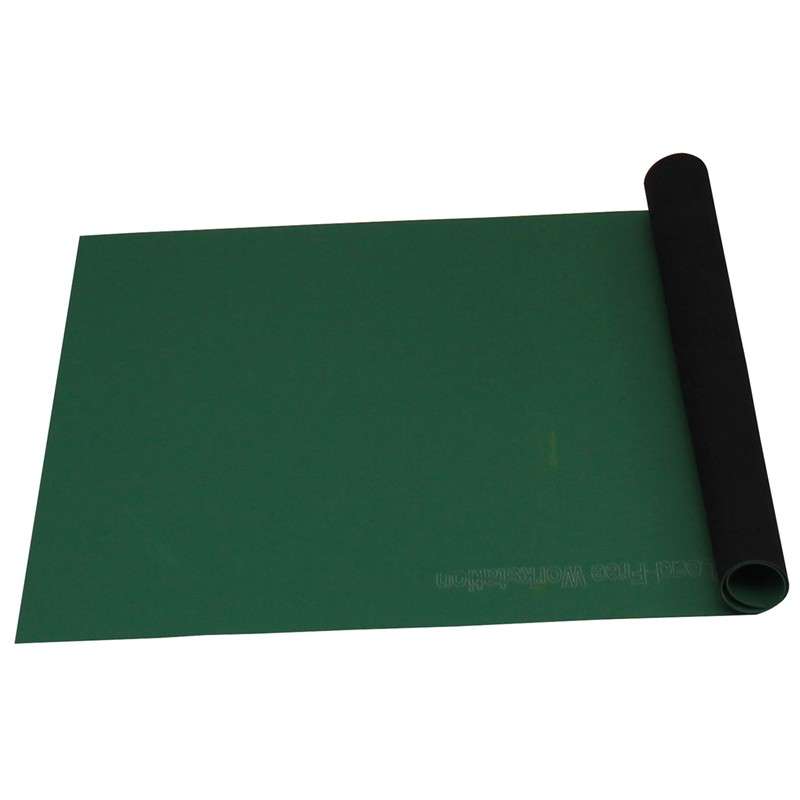

Statfree T2 Plus Dissipative Dual Layer Rubber Roll, Green, .060" x 24" x 20'

The Desco 66472 is a .060" x 24" x 20' dissipative dual layer rubber roll mat designed with a high strength nitrile rubber compound to withstand abrasion, stretching, and tearing. The dissipative dual-layer rubber mat does not generate a static charge but furnishes a controlled worksurface from any discharge rate from conductuors placed on its surface. These mats are considered a non-humidity dependent and supplies a consistent electrical performance without regard to ambient humidity and can be used in soldering applications like flux and other chemicals.

• Identifies ESD protective product for control and auditioning
• Stabalizes color retention, ensures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed
• Reduces the resistance to ground (rtg) from the top of the surface to the groundable point ground and allows the material to be used with ESD workstation monitors
• Improved material compound limits oil absorption to improve electrical and physical properties through the lifespan of the material. May be used in soldering applications with flux and other chemicals.
• Provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface 1.
• Meets ANSI/ESD S20.20 worksurface required limit and recommendationof ANSI/ESD S4.1 for contact with ESD susceptible items.

• Product Type: Dual Layer Rubber Mat Roll
• Color: Green
• Dimensions: 0.060"Thick x 24"W x 20'L
• Resistance: 1 x 106 to < 1 x 109 ohms
• Standards Met: ANSI/ESD S20.20
