FLK-FEV150/TY1 EV Charging Station Analyzer Kit

Features and Specifications

• CP State Simulation:
  • A: ± 12V 1kHz
  • B: 2.74 kilohm +9 V / -12V 1kHz
  • C: 882 ohm +6 V / -12V 1kHz
  • D: 246 ohm +3V / -12V 1kHz
• Voltage:
  • L-N, L-PE, N-PE: 0 V to 253 V, ±(3 % + 3 digits)
  • L-L: 0 V to 440 V, ±(3 % + 3 digits)
• Measurement Type: 6 mA and 20 mA GFCI trip and no trip test
• Fault simulation: PE error (earth fault/PE open), CP error E , Diode short, Error D

Highlights

• Simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
• Auto Control Pilot simulates various vehicle states with on screen feedback of nominal results and waveform analysis.
• Predetermined test plans and pass/fail indications on measurement results to simplify analysis and time spent testing.

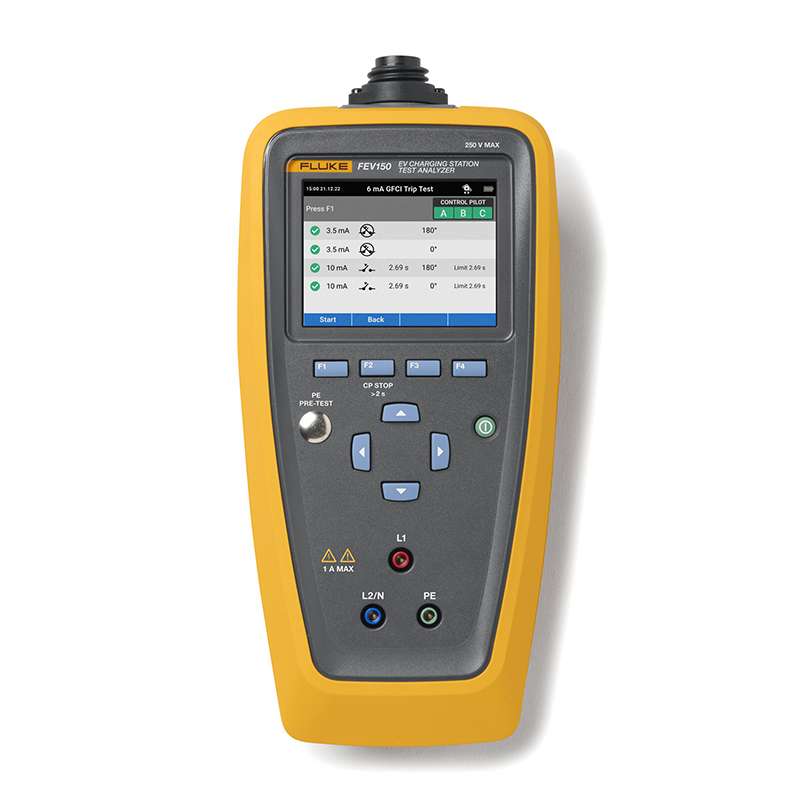

FEV150/TY1 Overview

The FLK-FEV150/TY1 is a complete solution for safety and performance testing of AC EV charging stations with Type 1 or Tesla type connectors. Designed for technicians required to perform and document multiple tests quickly and efficiently without carrying multiple tools. Available measurements include , PE pre-test, Visual Inspection, GFCI trip and no trip test, Nominal Voltage, Auto Control Pilot (Cp) with Waveform Analysis, Proximity Pilot, Error Testing.

Data Management and Reporting Software

TruTest Software optional allows you to quickly import measurement results directly from the FEV350 to computer, organize and analyze the data, compare individual asset data against previous measurements imported and provide a comprehensive and visual client report.

What's in the Box

• FEV150 Analyzer
• FEV-CON-TY1 Type 1 Connector & Cable
• Carrying Case
• 4x AA Battery
• TPAK
• Quick Reference Guide
• Safety Sheet
