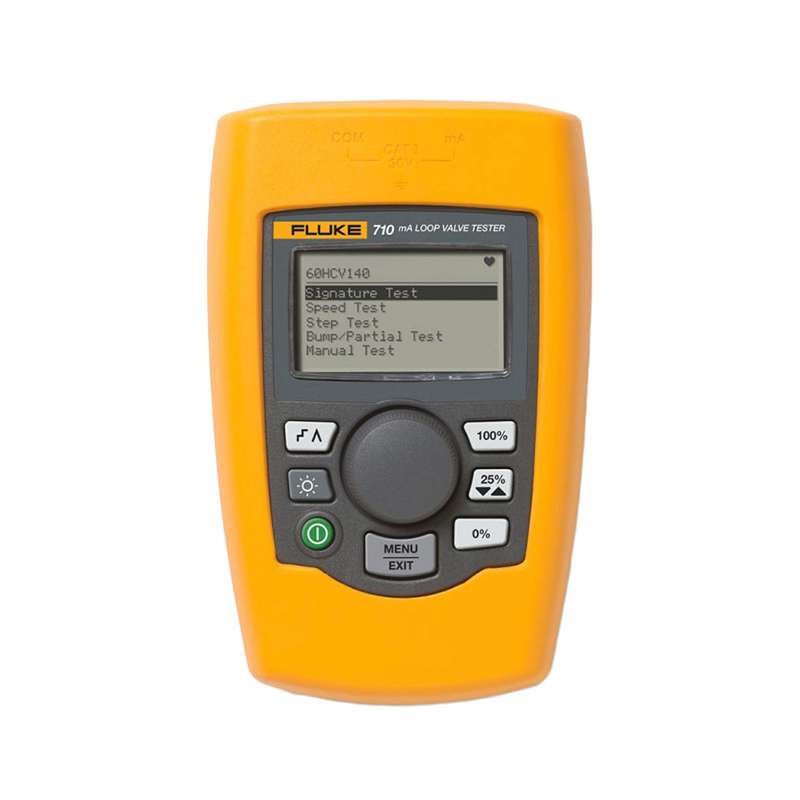

mA Loop Valve Tester with HART
Hisco #:4991049-19816
MFG #:4991049
Our Price: $3,608.57 PC
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4991049 features built-in test procedures and an intuitive user interface that allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics helps you make maintenance decisions faster than ever.
Fluke 4991049 Features:- Key valve testing functions - valve signature test, speed test, step test, manual test, bump/partial stroke test
- Key mA loop calibrator functions - mA source, mA simulate, mA read, mA read/loop power, and volts read
- ValveTrack™ software - enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
- Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
- Generic HART communication
- Brand: Fluke
- Product Type: Current Loop Calibrator Accessories
- Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read
- Ranges: mA (0 to 24 mA) and Volts (0 to 30 V dc)
- Resolution: 1uA on mA ranges and 1mV on voltage range
- Accuracy: 0.01% ±2 counts all ranges (@ 73.4°F ±41°F [23°C ±5°C])
- Humidity Range: 10 to 95% non-condensing
- Display: 128 x 64 pixels, LCD graphic w/backlight, .34 in high digits
- Stability: 20 ppm of F.S./°C from -10 to 18°C and 28 to 55°C
- Dimensions: 6 x 3.6 x 1.3" (15 x 9 x 3 cm)
Product Description
Technical Information
Back to top
Product Description
The Fluke 4991049 features built-in test procedures and an intuitive user interface that allows users to quickly and easily perform valve tests, while the valve test quick-check results provide at-a-glance diagnostics helps you make maintenance decisions faster than ever.
Fluke 4991049 Features:- Key valve testing functions - valve signature test, speed test, step test, manual test, bump/partial stroke test
- Key mA loop calibrator functions - mA source, mA simulate, mA read, mA read/loop power, and volts read
- ValveTrack™ software - enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
- Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
- Generic HART communication
- Brand: Fluke
- Product Type: Current Loop Calibrator Accessories
- Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read
- Ranges: mA (0 to 24 mA) and Volts (0 to 30 V dc)
- Resolution: 1uA on mA ranges and 1mV on voltage range
- Accuracy: 0.01% ±2 counts all ranges (@ 73.4°F ±41°F [23°C ±5°C])
- Humidity Range: 10 to 95% non-condensing
- Display: 128 x 64 pixels, LCD graphic w/backlight, .34 in high digits
- Stability: 20 ppm of F.S./°C from -10 to 18°C and 28 to 55°C
- Dimensions: 6 x 3.6 x 1.3" (15 x 9 x 3 cm)
Technical Information
Brand: Fluke
