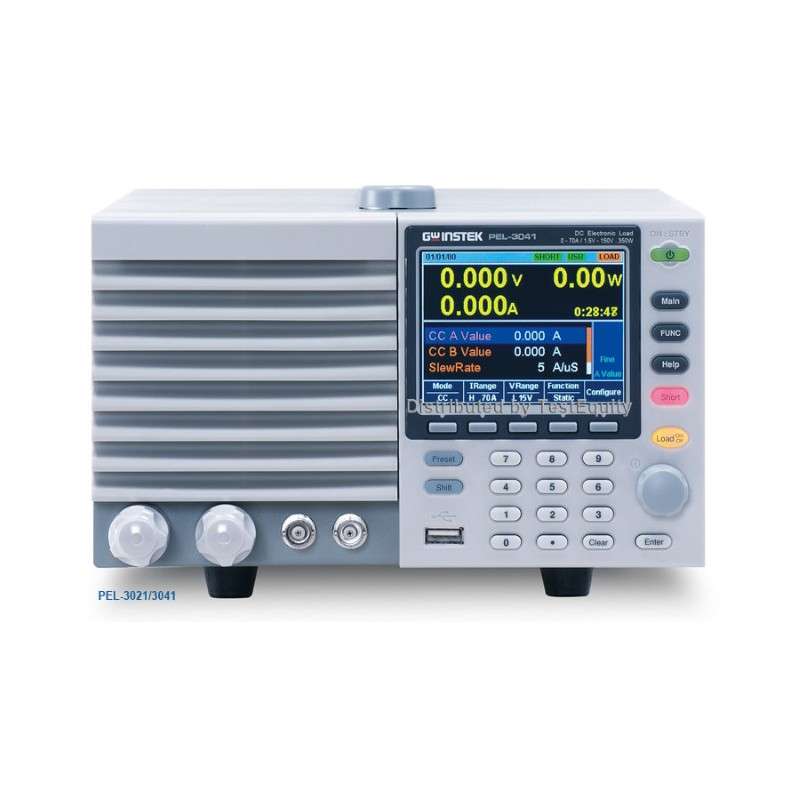

350W Programmable Electronic Load

• DC operating voltage: 1.5 V to 150 V
• Operating Mode: CC, CV, CR, CP, CC+CV, CR+CV, CP+CV
• Parallel Connection of Inputs for Higher Capacity (Max: 9,450 W)
• Supports High Slew Rate: Max 16 A/?s
• Run Program Function (GO/NO GO Test)
• Sequence Function for High Efficient Load Simulations
• Commands are compatible with Kikusui PLZ-4W
• Dynamic (Switching) Function: 0.0166 Hz to 20 kHz
• Soft Start Function: Off/On (1 to 200ms, Res: 1ms)
• Adjustable OCP, OVP, OPP, UVP Setting
• Short Circuit Function
• Timer function: Elapsed Time of load
• Cut Off Time (Auto Load Off Timer): 1s to 999h 59min 59s or Off
• External Channel Control / Monitoring via Analog Control Connector
• Setup Memories: 100 sets
• 3.5 Inch TFT LCD Display
• USB 2.0/Host, RS-232 Included. Optional GPIB.

Meets the requirements of high-power supplies
Instek PEL-3000 Series are single-channel, programmable DC electronic loads with 0.01mA current resolution and 16A/?s current slew rate. Static mode provides a fixed load. With Dynamic mode, two test conditions can be switched automatically with adjustable Level, Timing, and Slew Rate. Sequence mode provides a combination of up to 1,000 steps for semi-automated testing.

Flexible power combinations, high-speed, and versatile load simulations
Instek PEL-3000 Series has three stand-alone models with up to 1,050 Watts of load capability. Up to 5 identical units can be wired in parallel to increase the power capability. Additionally, up to four PEL-3211 Watt Booster Units can be wired in parallel with the PEL-3111 to achieve 9,450 Watts of total load capacity.

PEL-3000 Series Electronic Electronic Loads

Includes: user/programming manual CD, quick start guide, load input terminal Cover, terminal fittings (2 sets of type M8 bolts, nuts, springs, washers), and power cord.
