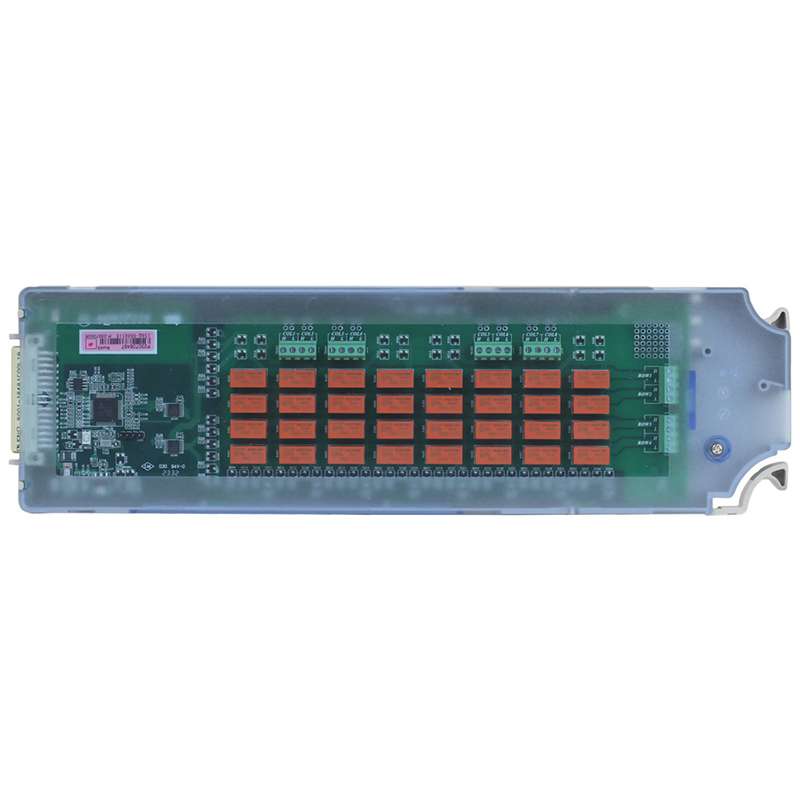

4 x 8 Matrix Data Module
Hisco #:DM304-65699
MFG #:DM304
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 654.99 | |
| 3 | 641.17 | Save |
B&K Precision DM304 - Switch Module
The DM304 4 x 8 Matrix is a dedicated switch module providing up to 32 cross-points in a 4 row by 8 column matrix. This module allows different test equipment to connect to multiple points on the device under test (DUT) at the same time. Additional DM304 modules can be wired together to expand the number of rows or columns, reaching up to 96 cross-points.
Features and benefits
- 32 2-wire cross-points
- 3 ms switching speed
- 300 V and 1 A maximum
- Expandable to 96 cross-points
Product Description
B&K Precision DM304 - Switch Module
The DM304 4 x 8 Matrix is a dedicated switch module providing up to 32 cross-points in a 4 row by 8 column matrix. This module allows different test equipment to connect to multiple points on the device under test (DUT) at the same time. Additional DM304 modules can be wired together to expand the number of rows or columns, reaching up to 96 cross-points.
Features and benefits
- 32 2-wire cross-points
- 3 ms switching speed
- 300 V and 1 A maximum
- Expandable to 96 cross-points
Technical Information
Additional Resources
