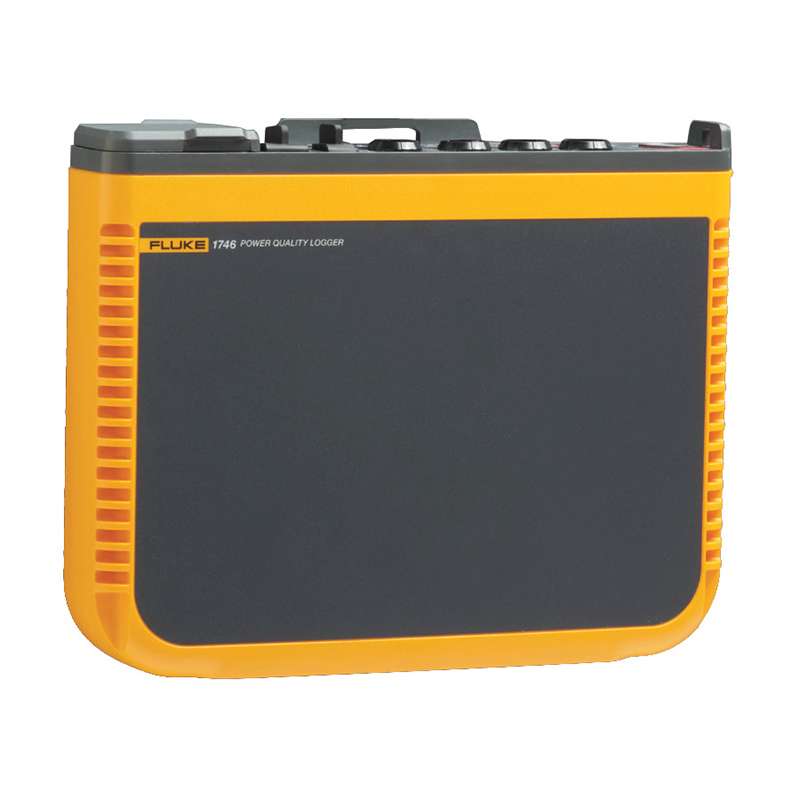

Power Quality Logger with 24in/60cm 1,500A IFLEX, EUS Version

The Fluke 4920613 is designed for troubleshooting, quantifying energy usage, and analyzing power distribution systems, this three-phase logger gives you fast access to the data you need to make critical power quality and energy decisions in real-time. Rugged and reliable, this logger features an optimized user interface and a 1500 A iFlex probe.

• Comprehensive logging: More than 20 separate logging sessions can be stored in the instrument. A comprehensive range of power and power quality variables are automatically logged so you never lose measurement trends
• Measure with premium accuracy: Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques—Power quality measurement methods
• Measure key power quality parameters: Measures harmonics and inter-harmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes
• Flexible power supply: Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 to 500 V or from a wall line cord, so you can test anywhere
• Rugged and reliable: Designed to withstand harsh installation environments with IP65 rating when used with IP65 voltage input adapter

• Brand: Fluke
• Product Type: Data Logging Devices
• Voltage Range: 100 V to 500 V using safety plug input when powering from the measurement circuit
• Power Consumption: Maximum 50 VA (Max. 15 VA When Powered Using MA-C8 Adapter)
• Efficiency: ≥ 68.2 % (In Accordance with Energy Efficiency Regulations)
• Maximum No-Load Consumption: <0.3 W Only When Powered Using IEC 60320 Input
• Mains Power Frequency: 50/60 Hz ± 15 %
• Battery: Li-ion 3.7 V, 9.2 Wh, Customer-Replaceable
• On-Battery Run Time: Typically 4 hours
