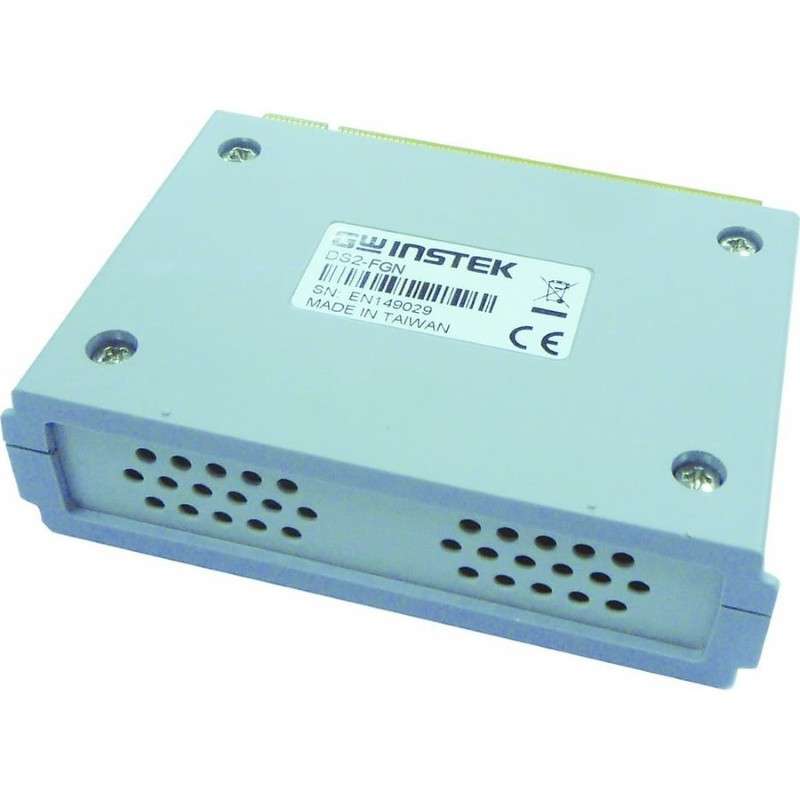

5MHz DDS Function Generator Module [GDS-2000A Series]

DS2-FGN DDS Function Generator

• Waveforms: Sine, Square, Triangle
• Frequency Range:
  • 0.1Hz - 5MHz for Sine
  • 0.lHz - 1MHz for Square
  • 0.lHz - l00KHz for Triangle
• Frequency Stability: +/- 50ppm
• Frequency Accuracy: +/- 50ppm ( +/- 0.25Hz)
• Amplitude Range:
  • 60mVpp - 6Vpp (into lM ohm)
  • 30mVpp - 3Vpp (into 50 ohm)

The plug-in module of DDS (Direct Digital Synthesis) based function generator is provided as an option of the GDS-2000A series. The function generator, with 5MHz bandwidth, is able to generate Sine, Triangle and Square waveforms, with variable duty cycle of the square waveform. Two function generators can be used at the same time to provide dual output signals. With the stimulus source, the verification of electrical characteristics and functionality of the DUT (Device Under Test) can be done in one DSO.
