GW Instek
GPIB Interface module [GDS-2000A Series]
Hisco #:DS2-GPIB-50297
MFG #:DS2-GPIB
Our Price: $462.00 EA
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 462.00 | |
| 3 | 446.33 | Save |
![GPIB Interface module [GDS-2000A Series]](https://d310u0ihrcjcdd.cloudfront.net/userfiles/images/products/test-equit-50297_ds2-gpib_dv_webxl.jpg)

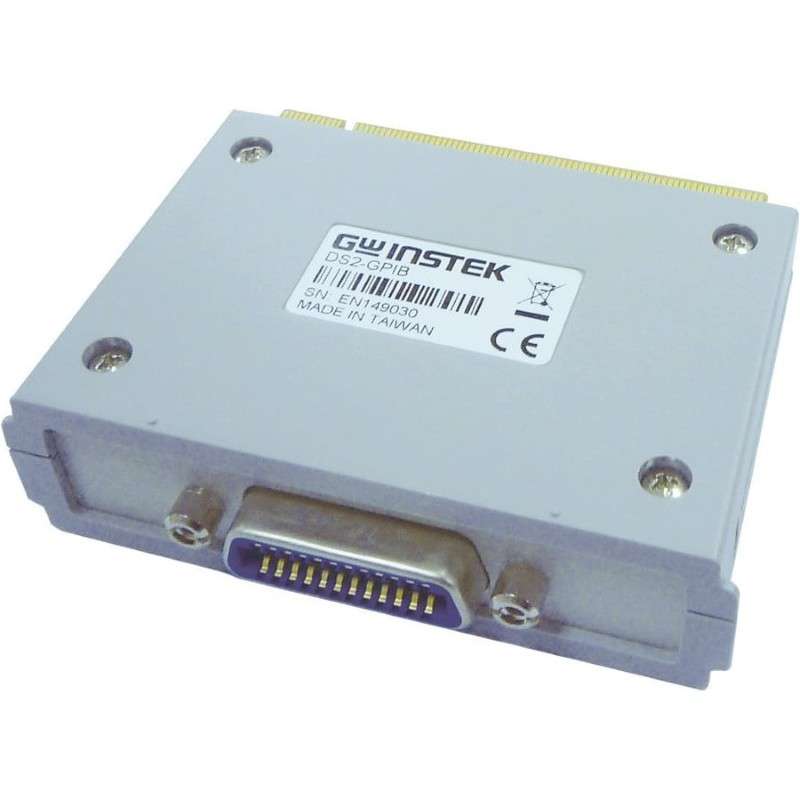

DS2-GPIB Module
To use GPIB, the optional module, DS2-GPIB (IEEE488.2), must be installed in the oscilliscope instrument. For funtionality, connect a GPIB cable from a PC to the installed GPIB module.
GPIB Constraints:
- Maximum 15 devices altogether, 20m cable length, 2m between each device
- Unique address assigned to each device
- At least 2/3 of the devices turned On
- No loop or parallel connection
Product Description
Technical Information
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
DS2-GPIB Module
To use GPIB, the optional module, DS2-GPIB (IEEE488.2), must be installed in the oscilliscope instrument. For funtionality, connect a GPIB cable from a PC to the installed GPIB module.
GPIB Constraints:
- Maximum 15 devices altogether, 20m cable length, 2m between each device
- Unique address assigned to each device
- At least 2/3 of the devices turned On
- No loop or parallel connection
Technical Information
Brand: GW Instek
Country Of Origin: TW
Harmonized Code: 9030.90.8010
