GW Instek
DC 300KHz Current Probe/200A
Hisco #:GCP-300-50297
MFG #:GCP-300
Our Price: $866.00 EA
Available to Order - 0 on Hand
Manufacturer Estimated Lead Time When Not In Stock: 31 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 866.00 | |
| 3 | 844.90 | Save |

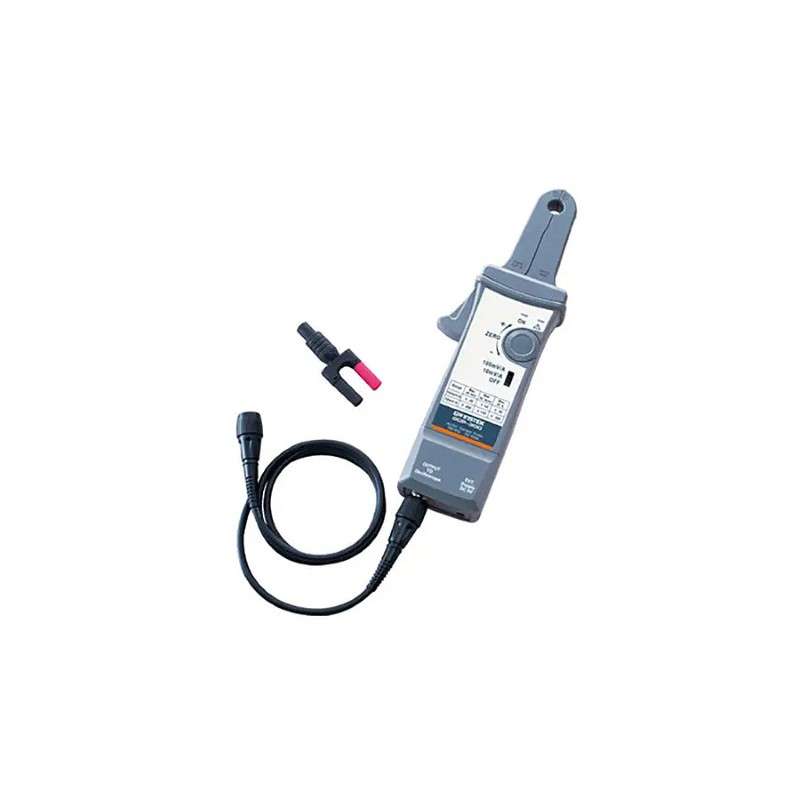

Instek GCP-300 AC/DC Current Oscilloscope Probe
Features and Specifications- Bandwidth : DC ∼ 300 kHz
- Max. Measure Range: 200A and 20A (10mV/A) (100mV/A)
- Overload Indicator
- Designed to measure AC and DC current
The GCP-300 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 200 amps Peak (140A RMS). The GCP-300 current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter.
What's in the Box- One Instruction Manual (English version).
- One BNC TO BNC Coaxial Cable Line, Length 100cm.
- One AC power converter (AC voltage depending on region).
- One BNC to banana plug adapter, designed with color fool proof design to avoid polarity mistake when connecting to digital meter (for use with digital meter).
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Instek GCP-300 AC/DC Current Oscilloscope Probe
Features and Specifications- Bandwidth : DC ∼ 300 kHz
- Max. Measure Range: 200A and 20A (10mV/A) (100mV/A)
- Overload Indicator
- Designed to measure AC and DC current
The GCP-300 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 200 amps Peak (140A RMS). The GCP-300 current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter.
What's in the Box- One Instruction Manual (English version).
- One BNC TO BNC Coaxial Cable Line, Length 100cm.
- One AC power converter (AC voltage depending on region).
- One BNC to banana plug adapter, designed with color fool proof design to avoid polarity mistake when connecting to digital meter (for use with digital meter).
Technical Information
Brand: GW Instek
Country Of Origin: TW
Harmonized Code: 9030.90.8010
