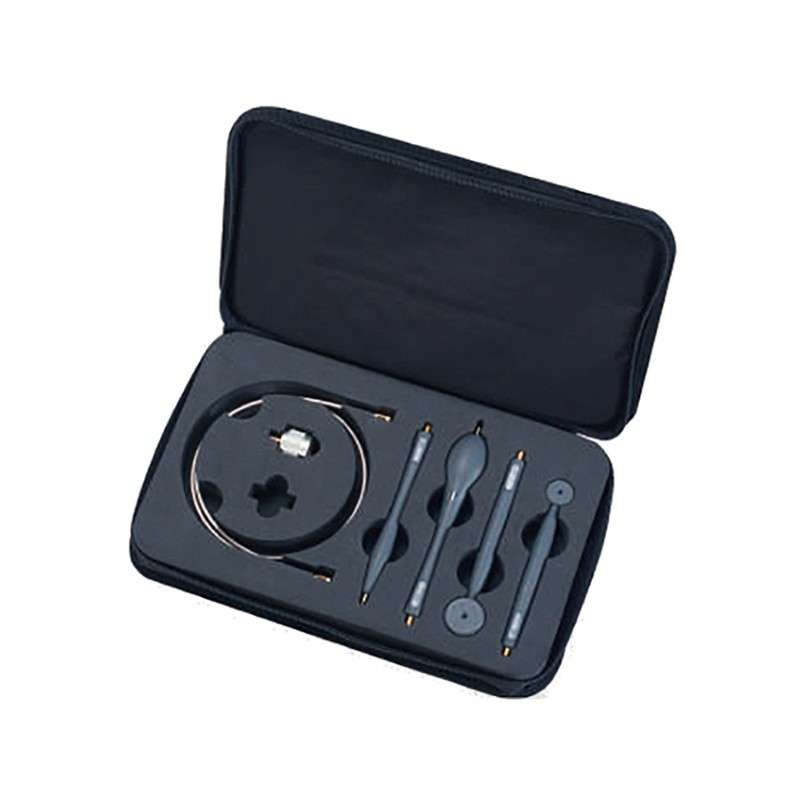

EMI Near Field Probe Set [GSP-730/830/9300/9330]

Series Key Features

• PR-01: AC voltage probe, 150kHz ~ 30MHz
• PR-02: Electric field probe, 30MHz ~ 3GHz
• ANT-04: Magnetic field probe, 30MHz ~ 3GHz
• ANT-05: Magnetic field probe, 30MHz ~ 3GHz
• ADP-002: Adaptor SMA(F) to N-type (M)
• GTL-303: RF testing cable SMA(M) to SMA(M)

GKT-008 EMI Near Probe Set comprises of four probes, including the PR-01, PR-02, ANT-04, and ANT-05. The antenna factors of these four probes are built in the EMC Pretest function of the GSP-9330 spectrum analyzer. ANT-04 and ANT-05 are EMI magnetic field probes, which can maximally sustain 50Vdc. ANT-04 and ANT-05 magnetic field probes will collocate with ADB-008 DC block to avoid damaging spectrum analyzer and the RF input terminal of DUT receiver. PR-01 is an AC voltage probe, which can maximally sustain CAT II, 300VAC, PR-01 AC voltage probe will collocate with GPL-5010 transient limiter and BNC (M) to SMA (F) adapter to avoid damaging spectrum analyzer and the RF input terminal of DUT reciever. PR-02 is an EMI electric field probe, which can maximally sustain CAT I 50V DC. PR-02 electric field probe will collocate with ADB-008 DC block to avoid damaging spectrum analyzer and the RF input terminal of DUT receiver.
