Air Temperature Sensor, -40 C to 85 C (-40 F to 185 F), Class A Accuracy per IEC60751, M12 Cable Gland, 100 Ω, 4 Wires, 6 mm, Screw Terminal Block, EWSA Series
Hisco #:EWSA-PT100-TX-37300
MFG #:EWSA-PT100-TX
Item must be ordered in multiples of 1
| Quantity | Price | Save |
|---|---|---|
| 1 | 324.79 | |
| 3 | 316.88 | Save |
The Omega EWSA-PT100-TX

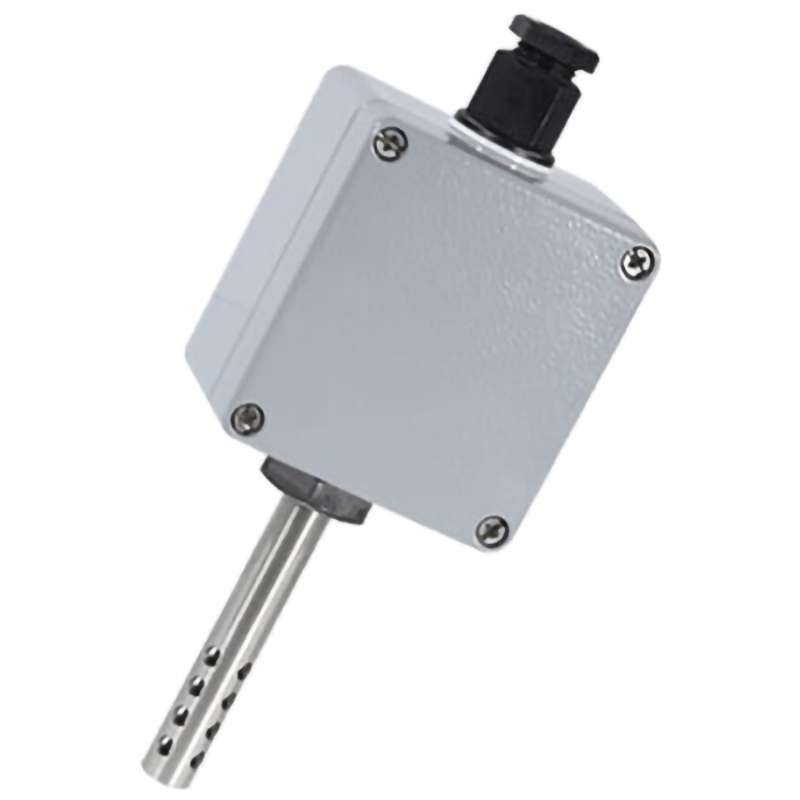

Rugged air temperature sensors offer the perfect solution for temperature monitoring outdoors or in demanding environments. A 6 mm–diameter sheathed RTD probe is housed in the center of a 12.7 mm (0.5") outer protection tube which is drilled to improve airflow around the sensor. A 4-terminal connector block or 4 to 20 mA transmitter are housed in a tough aluminum alloy enclosure rated to NEMA 4X (IP65).
A cable gland is fitted on the opposite side of the enclosure to the sensor, suitable for cables from 2.5 to 6.5 mm (0.098 to 0.25") diameter.
Air Temperature Sensor, -40 C to 85 C (-40 F to 185 F), Class A Accuracy per IEC60751, M12 Cable Gland, 100 Ω, 4 Wires, 6 mm, Screw Terminal Block, EWSA SeriesProduct Description
The Omega EWSA-PT100-TX
Rugged air temperature sensors offer the perfect solution for temperature monitoring outdoors or in demanding environments. A 6 mm–diameter sheathed RTD probe is housed in the center of a 12.7 mm (0.5") outer protection tube which is drilled to improve airflow around the sensor. A 4-terminal connector block or 4 to 20 mA transmitter are housed in a tough aluminum alloy enclosure rated to NEMA 4X (IP65).
A cable gland is fitted on the opposite side of the enclosure to the sensor, suitable for cables from 2.5 to 6.5 mm (0.098 to 0.25") diameter.
Air Temperature Sensor, -40 C to 85 C (-40 F to 185 F), Class A Accuracy per IEC60751, M12 Cable Gland, 100 Ω, 4 Wires, 6 mm, Screw Terminal Block, EWSA SeriesTechnical Information
